DF-A0001 — 5-Element Direction Finding Antenna

Interested in learning more about this product?

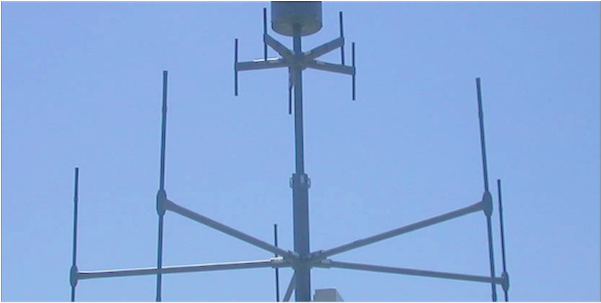

DF-A0001 is a wideband direction finding antenna covering 20-3600 MHz that can be assembled by one person in 30 minutes, without special tools.

The full-size elements on all bands give excellent DF sensitivity. Angular resolution for strong signals is well under 1º for most of the frequency range. Dipole elements provide good cross-polarization rejection, and fair performance for signals arriving from up to 15º above or below the horizon. It is designed to be used with a 5-channel phase-sensitive receiver, and correlative algorithm. Calibration of the antenna can be performed on request.

FEATURES:

  • Full-size DF
  • Wideband DF
  • 5-element interferometer
  • Robust construction
  • Waterproof
  • Quick assembly
