AD-10/S — Wideband VHF/UHF Vertical Dipole Antenna

Overview

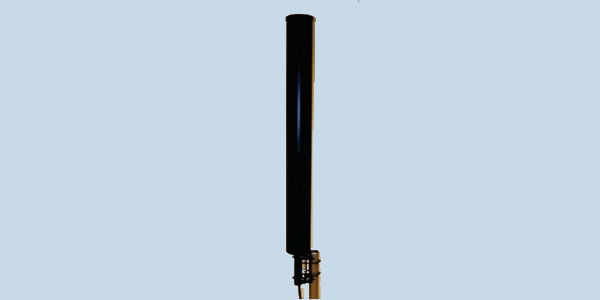

The AD-10/S is a wideband, vertically polarized dipole antenna designed for stationary operations. Enclosed in a rugged epoxy-glass composite radome, it provides reliable omnidirectional coverage across the 108 to 512 MHz frequency range for tactical and monitoring applications.

Technical Summary

• Frequency Range: 108 to 512 MHz
• Polarization: Vertical
• Power Handling: 500 W CW maximum
• Connector: N female (on a built-in 1-meter coaxial cable)
• Radome Material: Epoxy-glass composite

Operational Use Cases

• Tactical Communication
• Secure Communication Networks
• Spectrum Monitoring

Deployment Environments

Engineered for fixed site and stationary deployments, the antenna offers excellent environmental protection. It withstands wind velocities up to 160 km/h and operates reliably in extreme temperatures ranging from -55 to +80 °C.

Performance Metrics

• Operating Band: VHF and UHF (108–512 MHz)
• Power Rating: 500 W CW maximum
• Gain: -2 to +2 dBi
• Radiation Pattern: Constant vertical radiation pattern across the bandwidth

Setup & Portability

The assembly features a special mounting tube with a console adapter, enabling straightforward installation on masts up to 60 mm (2 inches) in diameter. Connection is simplified via the integrated 1-meter coaxial cable.

Compatibility

The antenna is compatible with standard RF transmission and monitoring systems utilizing an N female interface. The included console adapter is strictly compatible with mast diameters up to 60 mm.

FAQs

• What are the radiation properties of this dipole antenna? The antenna is vertically polarized, aligning its electric field vertically. The manufacturer specifies it produces a relatively constant vertical radiation pattern across its 108 to 512 MHz operating range.
• What power handling limits apply to this model? This antenna is rated for a maximum continuous power of 500 W CW. Ensure your transmitter output remains below this threshold and verify the impedance match to prevent damaging reflected power.
• How is this antenna mounted to stationary structures? The assembly includes a console adapter designed for mast attachment. Verify that your installation structure has an outer diameter of 60 mm or less to ensure compatibility with the provided mounting hardware.
