NRG9009 SDR — Multi-Channel Software Defined Radio

Overview
The NRG9009 SDR is a high-performance multi-channel software defined radio (SDR) platform ideal for radio applications demanding performance and reliability in a low SWaP form factor. It features six coherent receive and/or transmit channels, each with a bandwidth of up to 200 MHz. The data is interfaced via 40 GbE fibre that provides ample throughput for the most demanding SDR applications.
The NRG9009 SDR’s modular architecture provides flexibility: the analog RF circuitry of the receiver is designed as a customisable module called the Analog Front End (AFE). A standard wideband AFE is available that provides 6 receive channels that cover the frequency range of 20 to 6 GHz with exceptional sensitivity. Other AFE options are available on request.

Key Features
20 MHz – 6 GHz frequency range
Max instantaneous bandwidth of 200 MHz
6 channels of transmit and receive
IP rated pole-mount enclosures for outdoor applications as well as indoor rack-mount enclosure options
High performance RF specifications
Standard API for software integration
Integrated GPS with GPSDO enabling applications that require high accuracies of frequency and timing
Option to synchronise two units to create a 12 channel coherent transceiver

Enclosure Options

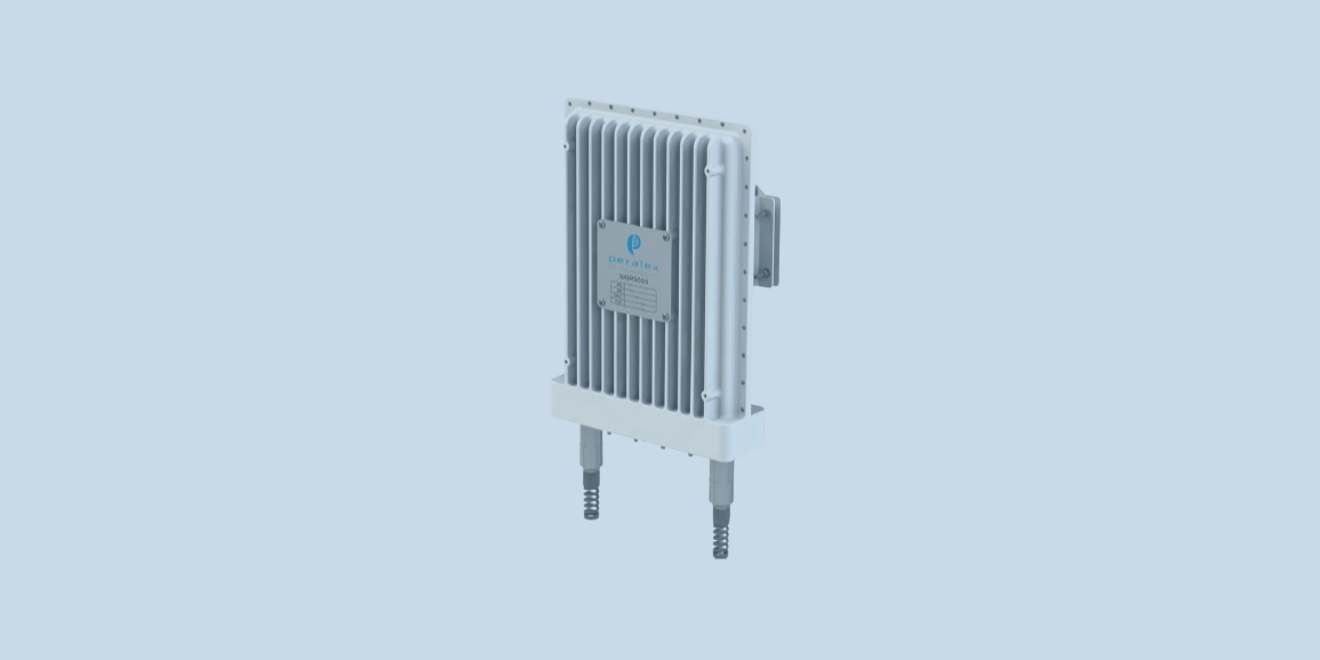

Two enclosure options are available. The outdoor enclosure is designed for pole mount applications where the SDR can be conveniently co-located with the antenna, eliminating the need for lengthy RF cables. This enclosure uses passive cooling and is rated to IP67.
The indoor enclosure provides a versatile compact form factor for desktop or rackmount (1U height, 19” width) applications.
