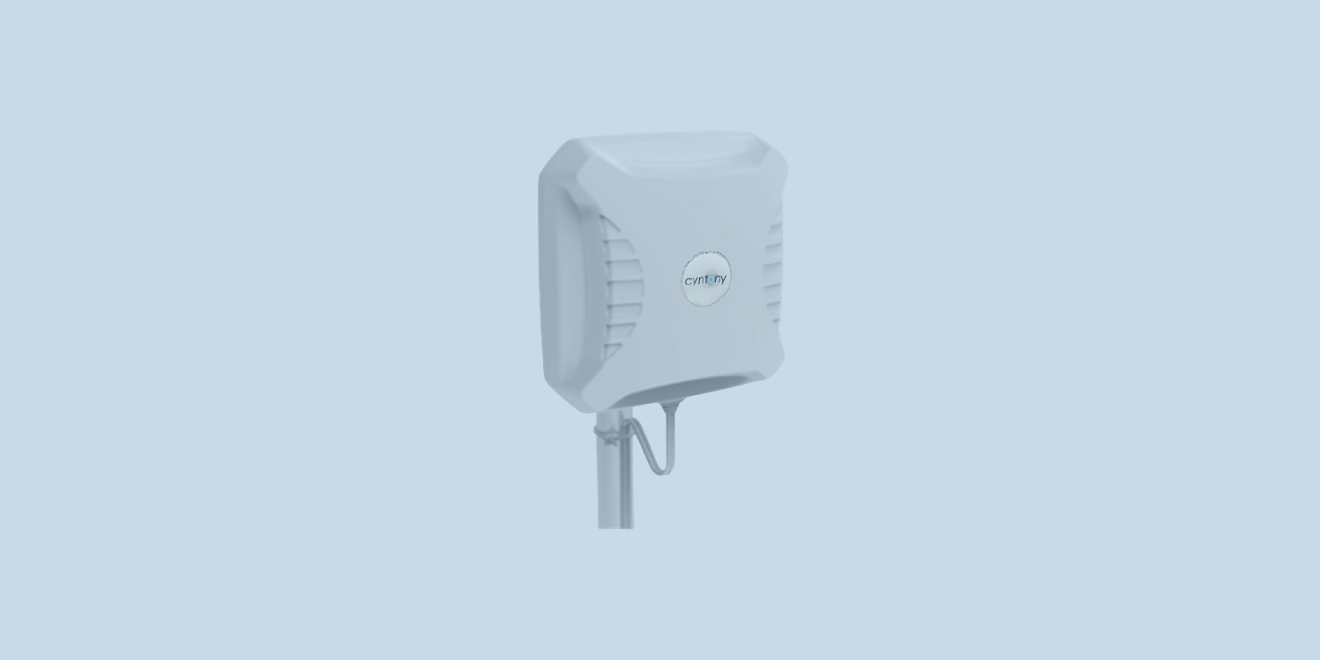

XTND-C010-DIRECT Base Station with Doodle Labs Mesh Rider Radio

The XTND base station product family delivers enhanced long-range performance for its integrated Doodle LabsMesh Rider Mini OEM 2x2 MIMO Radio. Offering the
convenience of an IP-65 basestation energized with PoE (802.3 af/at/bt), the XTND-C010 has a single IP-67 rated RJ-45 connector for both power and Fast Ethernet (100 Mbps) connectivity. Internal cross-polarized antennas with gain of 6-9 dBi deliver range improvements of at least 2 times versus omnidirectional antennas.

For radio relay applications at different frequencies use two co-located XTND base stations. Contact Cyntony for details.

Features:

• Long-range high-throughput wireless networking
• Ultra-reliable low-latency channel for control
• Easy mast-mounting
• Energized by PoE (802.3 af/at/bt)
• Fully integrated and tested

Applications:

• Robotic and autonomous system communications
• Resilient private wireless MANET range extension
