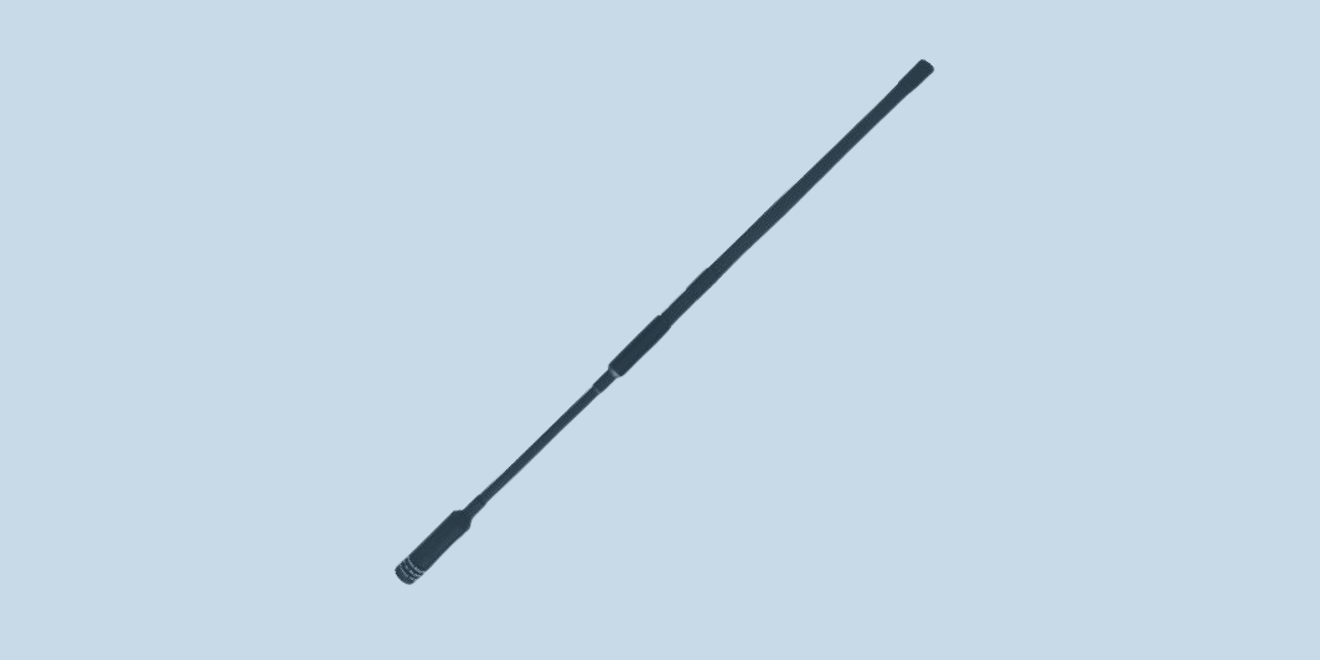

AD-44/WB-3512-LW — Wideband Center-fed Dipole Antenna
Interested in learning more about this product?
The antenna AD-44/WB-3512-LW is a wideband VHF/UHF low weight dipole ("center-fed") antenna, primarily intended for use with handheld and manpack portable radio units in VHF/UHF frequency range from 30 to 512 MHz. Electrically the antenna is optimized for all exploitation conditions (portable radio unit on operator body, hand, ground, etc.) so it is not necessary to additionally tune the antenna. The antenna is composed of four basic elements (from the bottom up): Current-choke unit, flexible goose-neck, matching unit and tape radiator. Current-choke unit allows antenna to be independent of the portable radio unit and so forms a correct dipole shape. Flexible goose-neck allows bending the antenna to be always in vertical position. Matching unit with a special built-in passive transformer tuning network is enclosed in a plastic housing. All the
metal antenna parts are made of aluminium which make significant impact on a weight. The antenna weight is only 155 grams. Antenna connector is TNC male.
