AD-64/H — UHF/SHF Dipole Antenna

Overview

The AD-64/H is a UHF/SHF center-fed dipole antenna designed for portable communication and jamming applications. Covering a continuous frequency range from 1500 to 6000 MHz, this antenna features a flexible goose-neck design that allows for adjustable positioning in the field.

Technical Summary

• Frequency Range: 1500 to 6000 MHz (L, S, and C bands)
• Antenna Type: Center-fed Dipole
• Polarization: Vertical
• Gain Range: Approximately -5 dBi to +6 dBi
• Maximum Power: 50 W CW
• Connector: N Male

Operational Use Cases

This antenna is engineered for tactical communication and RF jamming applications. Its form factor and wideband coverage make it suitable for integration into handheld devices and manpack systems operating across the UHF and SHF spectrums.

Deployment Environments

Built to withstand demanding tactical environments, the antenna complies with MIL-STD-810G standards. It ensures reliable operation when exposed to extreme temperatures, humidity, and vibration.

Performance Metrics

The electrical design is optimized across the entire 1500 to 6000 MHz operating range, eliminating the need for additional tuning. It safely handles continuous wave (CW) power inputs up to 50 watts.

Setup & Portability

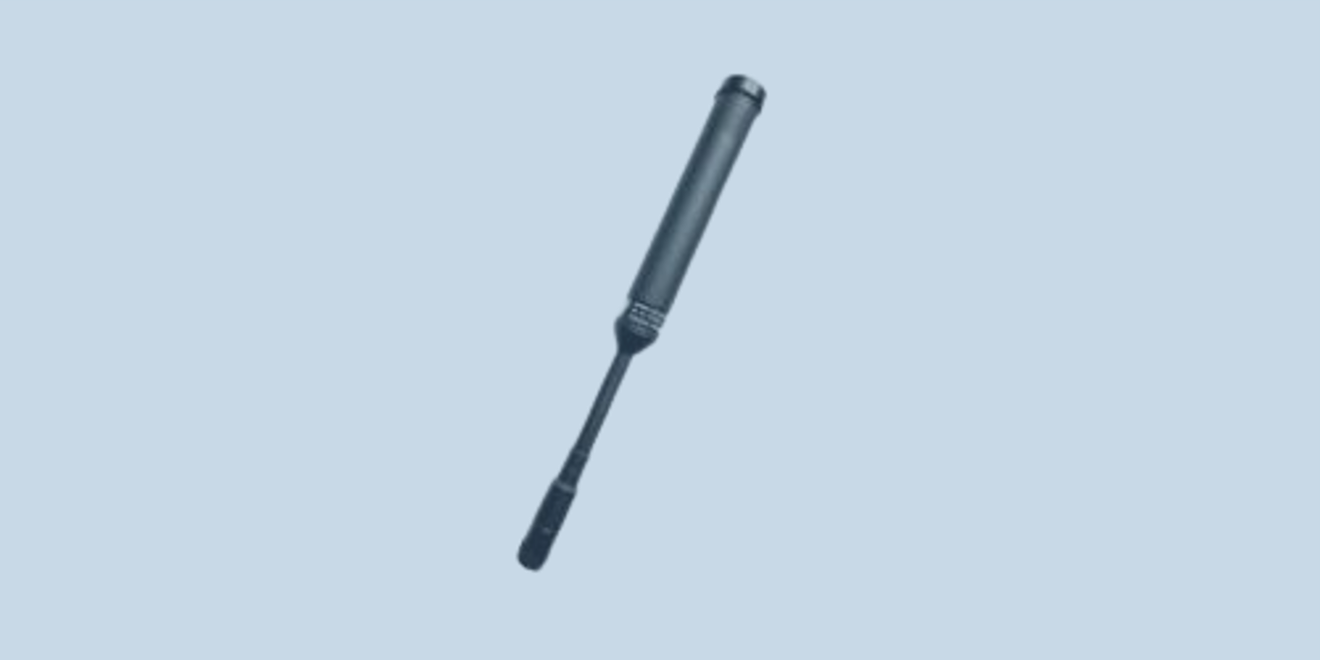

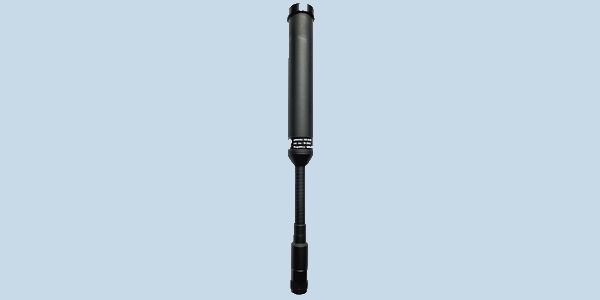

The structure consists of a bottom connector unit, a central goose-neck, and a top dipole radiator. The goose-neck enables the antenna to be bent into multiple positions, while the radiating element is protected by a rigid plastic tube for durability during transport and active use.

Compatibility

Equipped with a standard N Male connector, the antenna interfaces directly with compatible tactical radios, jamming transmitters, and portable communication platforms.

FAQs

• How do I select the appropriate omnidirectional antenna for tactical use? Verify whether the application requires a receive-only or transmit-capable antenna, confirm the maximum continuous power output of the transmitter, and ensure the antenna matches the physical requirements of the intended platform.
• How does operating frequency affect the gain of wideband omnidirectional antennas? Gain typically fluctuates across the operating band. Depending on the physical dimensions of the structure, wideband omnidirectional antennas can exhibit gain as low as -20 dB at the lowest end of their frequency range.
• What is AD-64/H — UHF/SHF Dipole Antenna used for? AD-64/H — UHF/SHF Dipole Antenna is categorized as Omni Antenna. Listed applications include Jamming, Tactical Communication.
• Problems we solve: how do we narrow antenna choices? Balancing operating bands, coverage needs and mounting space can make antenna selection difficult. Share those constraints with Cyntony to compare candidate antennas and identify what needs manufacturer confirmation (Our process).
• Outcomes we deliver: what did Cyntony's tactical-link field test establish? Cyntony's 2025 XTND-DIRECT field test showed how terrain, antenna height and clearance affected a specific mesh-radio link. The result informs deployment questions; it does not establish range, throughput or suitability for this product (Field-test account).
