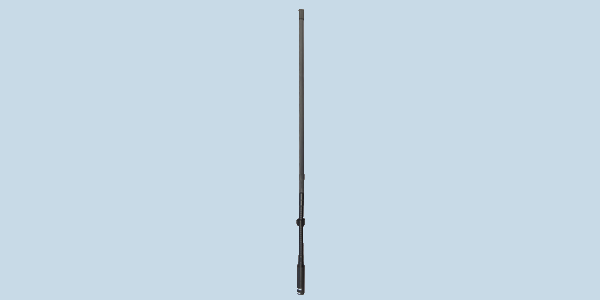

AD-65/A-1512 — Wideband VHF/UHF Manpack and Handheld Whip Antenna

Overview

The AD-65/A-1512 is a wideband monopole whip antenna engineered for manpack and handheld radios. Operating across the 100 to 512 MHz VHF/UHF frequency range, it provides reliable connectivity in a highly portable form factor.

Technical Summary

• Frequency Range: 100 to 512 MHz (VHF/UHF)
• Antenna Type: Wideband monopole whip with a tape radiator
• Matching Unit: Built-in passive transformer tuning network
• Enclosure: Fiberglass housing above the input coaxial connector

Operational Use Cases

Optimized for tactical communications, this antenna is primarily utilized for manpack and handheld radio operations. It is electrically optimized to maintain performance across varied carrying positions, such as operating the radio in hand or worn at the side.

Deployment Environments

Designed for mobile and dismounted field use, the antenna relies on a robust fiberglass base and a flexible tape radiator. This construction supports operators navigating dynamic environments while carrying portable radio equipment.

Performance Metrics

• Operating Band: 100 to 512 MHz
• Tuning: Pre-optimized for all exploitation conditions; no manual tuning is required

Setup & Portability

The design incorporates a flexible goose-neck between the matching unit and the tape radiator. This allows the antenna to be bent and adjusted so that the radiating element remains in a vertical position during transport or operation.

Compatibility

Compatible with manpack and handheld radios operating within the 100 to 512 MHz VHF/UHF frequency bands. Verify specific coaxial connector mating requirements with the radio manufacturer.

FAQs

• When should a monopole antenna be selected instead of a dipole? Deciding between a monopole and dipole depends on the concept of operations and the platform's ability to form a counterpoise. Handheld and manpack radios generally use monopole antennas, while portable or fixed-site applications typically utilize dipoles.
• How do omnidirectional antennas radiate energy? Omnidirectional antennas radiate energy in a three-dimensional pattern, typically forming a circular azimuth profile that covers 360 degrees. The elevation pattern is inherently directional, concentrating energy toward the horizon while naturally creating nulls directly above and below the antenna.
• What must be verified before using an antenna for transmit operations? Always verify the maximum continuous power output of the transmitter and its acceptable voltage standing wave ratio (VSWR) limits. Selecting an antenna that handles the expected power and provides a well-matched impedance prevents reflected power from damaging the amplifier.
• Problems we solve: how do we narrow antenna choices? Balancing operating bands, coverage needs and mounting space can make antenna selection difficult. Share those constraints with Cyntony to compare candidate antennas and identify what needs manufacturer confirmation (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).
