ADK-... — Antenna Mounting Adapters

Overview

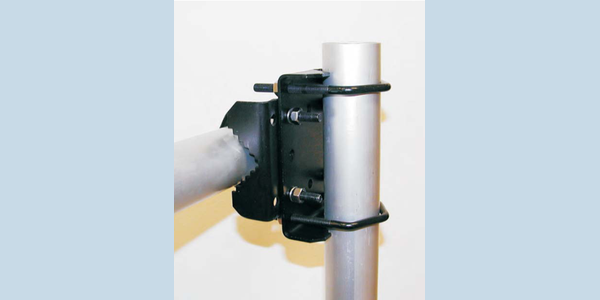

The Trival Antene ADK series is a versatile, modular mounting system designed for flexible antenna installations. Comprising universal adapters, lengthening arms, mounting pipes, angle adapters, and clamps, this system allows for numerous configurations on or adjacent to mast structures. Built for longevity, all components are constructed from durable steel or stainless steel with galvanic zinc protection and a cataphoretic black paint finish.

Technical Summary

• System Components: Universal adapters (ADK-U), lengthening arms (ADK-R), mounting pipes (ADK-C), angle adapters (ADK-L), and mounting clamps (ADK-O)
• Materials: Stainless steel or steel
• Finish: Galvanic zinc protection with cataphoretic black paint
• Mast Compatibility: 20–60 mm (e.g., ADK-U/60) and 60–120 mm (e.g., ADK-U/120) diameters
• Arm Lengths (ADK-R): 250 mm, 500 mm, and 1000 mm

Operational Use Cases

The ADK modular system supports mounting single or multiple antennas either directly on an antenna mast or adjacent to it, adapting to varied structural requirements and array configurations.

Deployment Environments

Suitable for outdoor mast installations requiring durable corrosion resistance, utilizing galvanic zinc protection and a cataphoretic paint finish to enhance hardware longevity.

Setup & Portability

The system is highly configurable, allowing installers to combine the five basic modular elements in countless ways to accommodate specific mast dimensions, offset requirements, and antenna counts.

Compatibility

Compatible with mast diameters ranging from 20 to 120 mm depending on the specific clamp or console model selected (e.g., /60 variants for 20–60 mm, /120 variants for 60–120 mm).

FAQs

• What mast diameters are supported by the ADK modular mounting adapters? The system includes specific models for different mast sizes, including 20 to 60 mm configurations (such as the ADK-U/60) and 60 to 120 mm configurations (such as the ADK-U/120).
• How should grounding be handled for mast-mounted antennas? Ensure all cable connections and grounds are tight, clean, and free of grease, paint, or rust to provide an electrical path to a buried metallic object. Proper grounding improves signal strength and mitigates electrical hazards.
• What must be verified before installing multiple antennas on a single mast? Verify the manufacturer's attachment method and ensure the chosen combination of universal adapters, lengthening arms, and clamps matches the physical dimensions and structural attachment points of each antenna.
• Problems we solve: how do we choose a mounting or mast solution? Antenna loads, available space and deployment conditions can make mounting selection difficult. Bring those constraints to Cyntony to narrow options and identify load ratings, installation details and manufacturer questions that need confirmation (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).

Video Notes

A video demonstrating the assembly and configuration of the different ADK modular components on a standard mast would be helpful for installers.
