DF-A0076/A0015 — Active Adcock Direction Finding Array

DF-A0015 implements an 8-element active Adcock array with a centrally located ninth element for omni-directional sensing. This direction finding antenna array covers a frequency range of 1 to 30 MHz.
For improved performance at low frequencies, the DF-A0076 can be installed instead. As well as the 9 elements of the original DF-A0015, this array features a second array at approximately 4 times the diameter, giving superior DF sensitivity in the 0.5 to 7 MHz band.
The arrays are intended for use in conjunction with the Watson Watt (WW) DF estimation method. Corrected WW may also be used to enhance accuracy in the 25 to 30 MHz region.
The array features a passive mode where the active matching circuitry is bypassed and powered down. All antenna elements are connected to the central combiner system for beam forming.

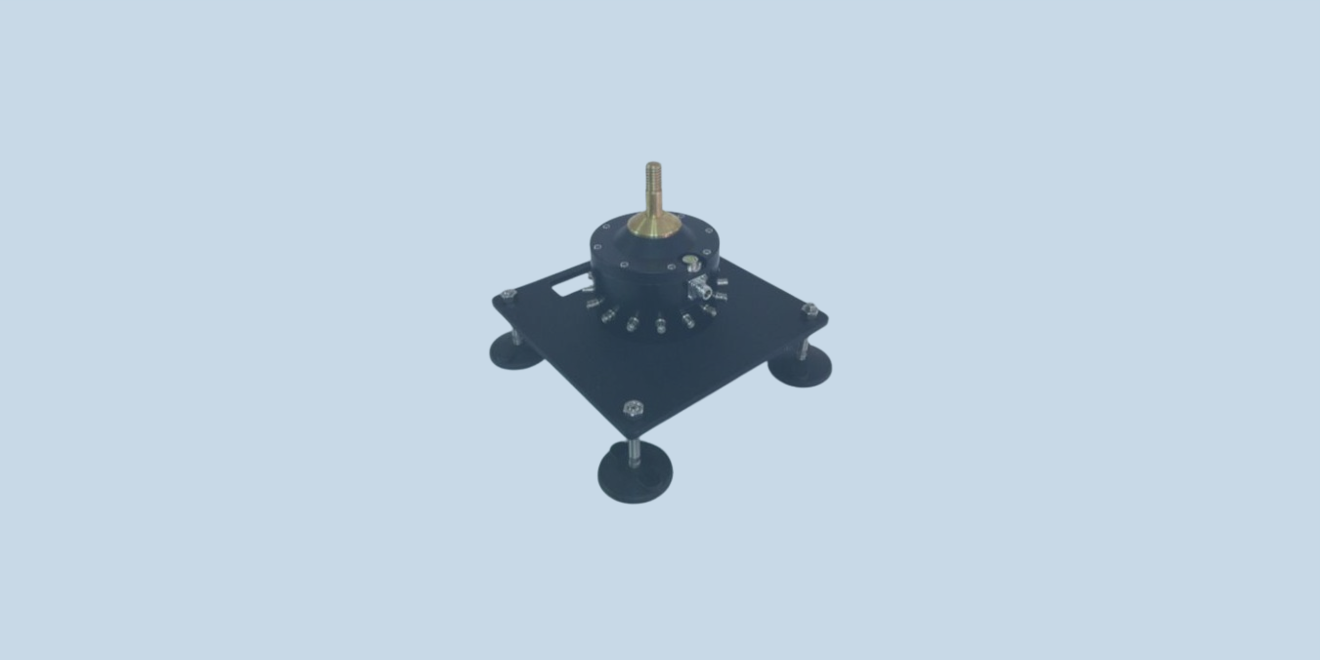

Shipped in compact storage and transport boxes, the antenna can be assembled by one person in 60 minutes, without special tools or civils. Adjustable feet on each element accommodate uneven surfaces. The array is designed for long-term outdoor deployment and is weather resistant.

ELECTRICAL FEATURES:
• HF active DF
• Unique aperture shaping provides excellent accuracy over wideband with Watson Watt method
• Passive bypass mode

MECHANICAL FEATURES:
• Robust construction
• Waterproof
• Quick assembly on any surface
• Temporary or permanent installation
