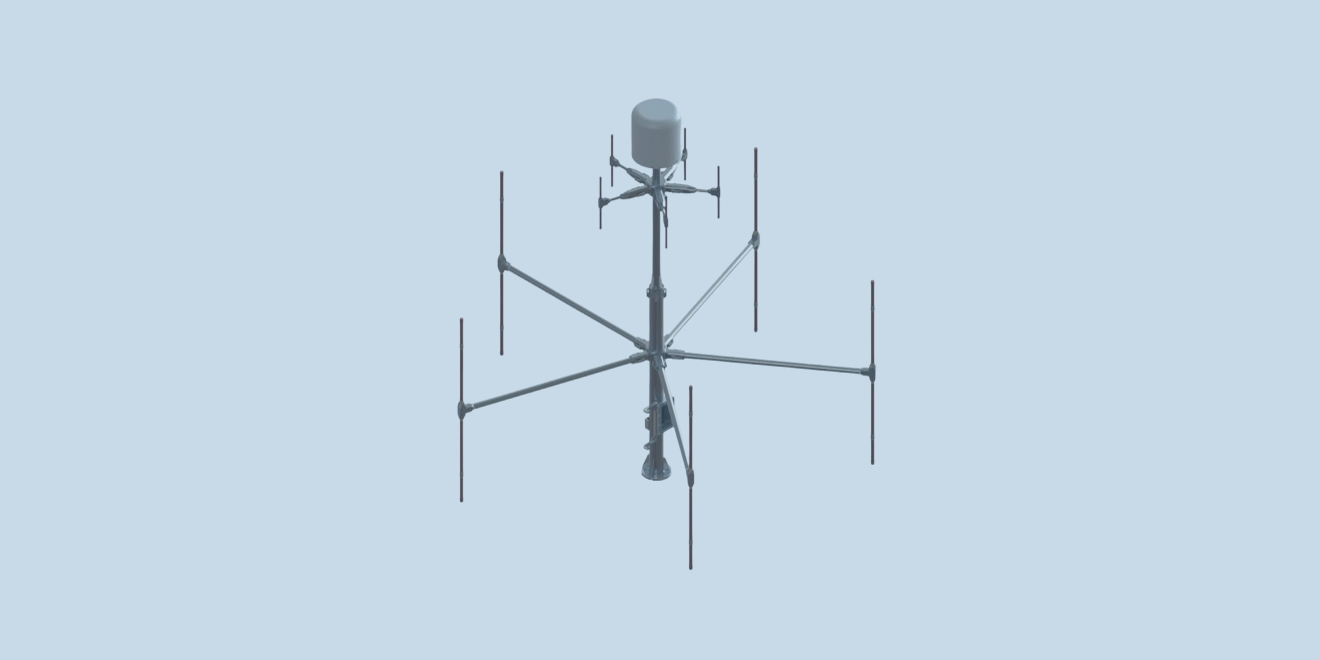

The DF-0092 maritime direction-finding antenna covers a frequency range of 20 MHz to 3 GHz. Shipped in a compact storage and transport box.
The full-size elements on all bands give excellent DF sensitivity. Ultimate angular resolution for strong signals is well under 1º for most of the frequency range. Dipole elements provide good cross-polarisation rejection, and fair performance for signals arriving from up to 15º above or below the horizon.
This DF antenna is designed to be used with a 5-channel phase-sensitive receiver, and correlative algorithm. Calibration of the antenna can be performed on request.
ELECTRICAL FEATURES:
• Full-size DF
• Wideband DF
• 5-element interferometer
MECHANICAL FEATURES:
• Robust construction
• Waterproof
• Quick assembly
