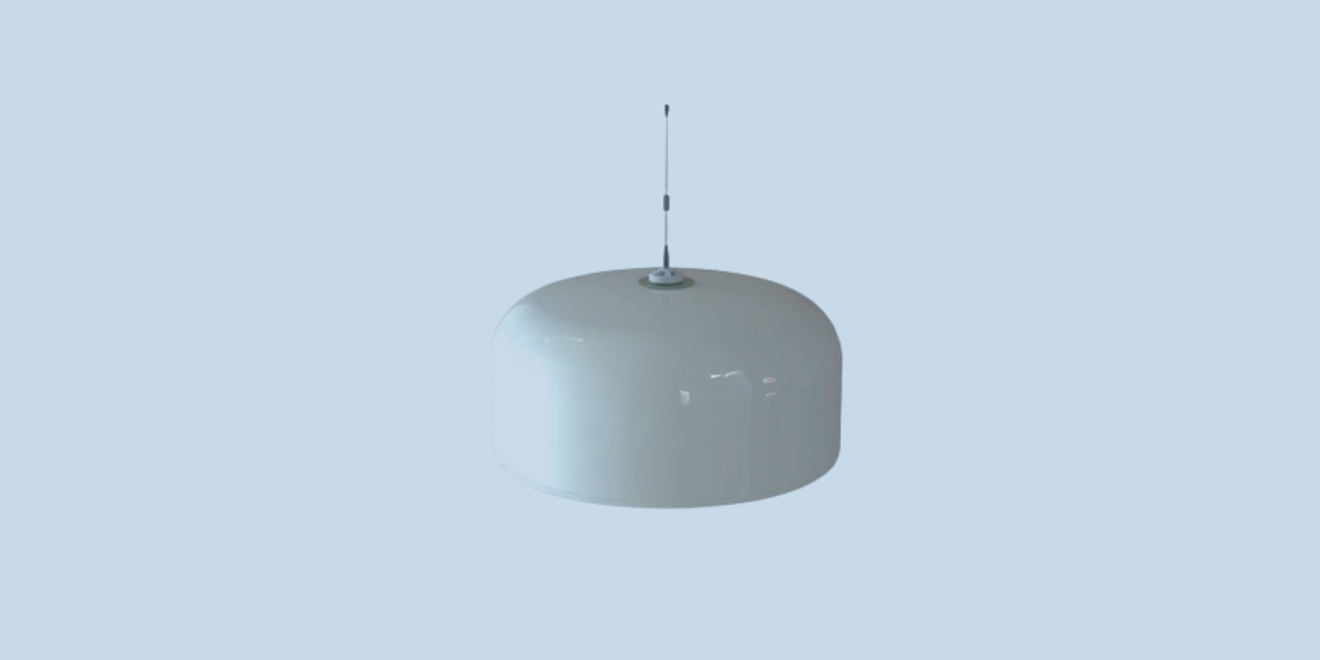

DF-A0143 — Compact DF Antenna

The DF-A0143 is a wide band (1 – 3000 MHz), ruggedized mobile DF antenna. It is intended for variety vehicular platforms, for example, small tactical vehicles (dune buggies, two or three wheeled vehicles), vans, Humvees and could be used on airborne structures.
The antenna uses a combination of crossed-loop and Adcock array principle for the various bands providing maximum possible sensitivity for its compact form factor.
Please note that corrected WW and correlative interferometric DF could be used for enhanced performance.
A dedicated Omni output provides a monitoring capability for signal interception and demodulation.
A cavity inside the antenna houses an integrated band switch that allows control and calibration circuitry to be integrated into the antenna.

PRODUCT FEATURES:
• Super compact
• Low profile
• Light weight, < 4.2 kg
• Wideband coverage
• Internal solid-state band and noise switch

APPLICATIONS:
• Mobile direction finding
• Wideband monitoring
