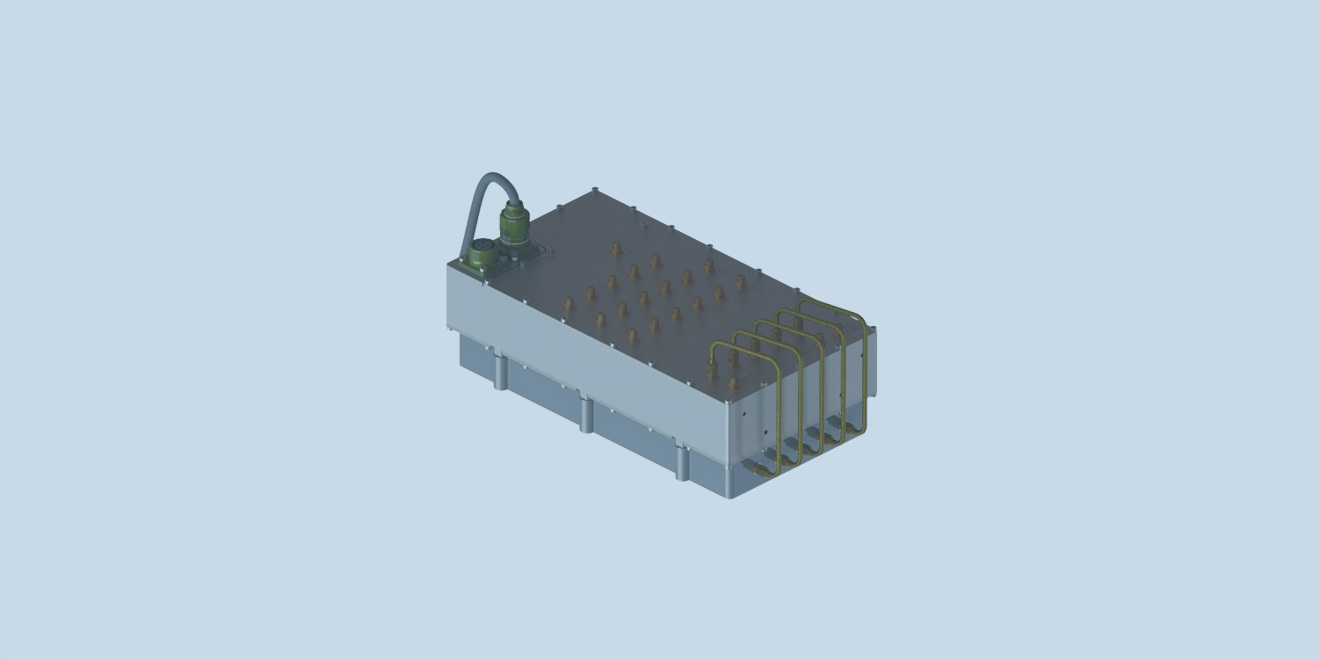

DF-A0239 — High-Speed DF Antenna Commutating Switch

The DF-A0239 is a high-speed 6- to 3-channel commutating switch intended for switched elements direction finding applications. The switch works in combination with a band switch* and can accommodate up to 4 bands, each with 6 antenna elements, and routes any 3 elements of a selected band of 6 elements to any of the 3 outputs. The switch is designed to be mounted internally within the weatherproof cavity of the DF-A0029, DF-A0037 and DF-A0095 direction finding antennas, as well as the DF-A0057 outdoor enclosures designed for use with the DF-A0001, DF-A0007, DF-A0038, DF-A0062 and DF-A0136.
The switch accepts a very wide input voltage range and is controlled via hardwired logic lines or an EIA-485 (RS-485) interface. The commutation table can be programmed via the RS-485 interface. Commutation is triggered via an external strobe line. All switching is solid state for rapid commutation and unlimited switching cycles.

PRODUCT FEATURES:
• 6- to 3-channel commutating switch
• High-speed solid-state switching

APPLICATIONS:
• DF band switching for Alaris’ range of DF antennas, particularly, the DF-A0029, DF-A0037 and DF-A0095
