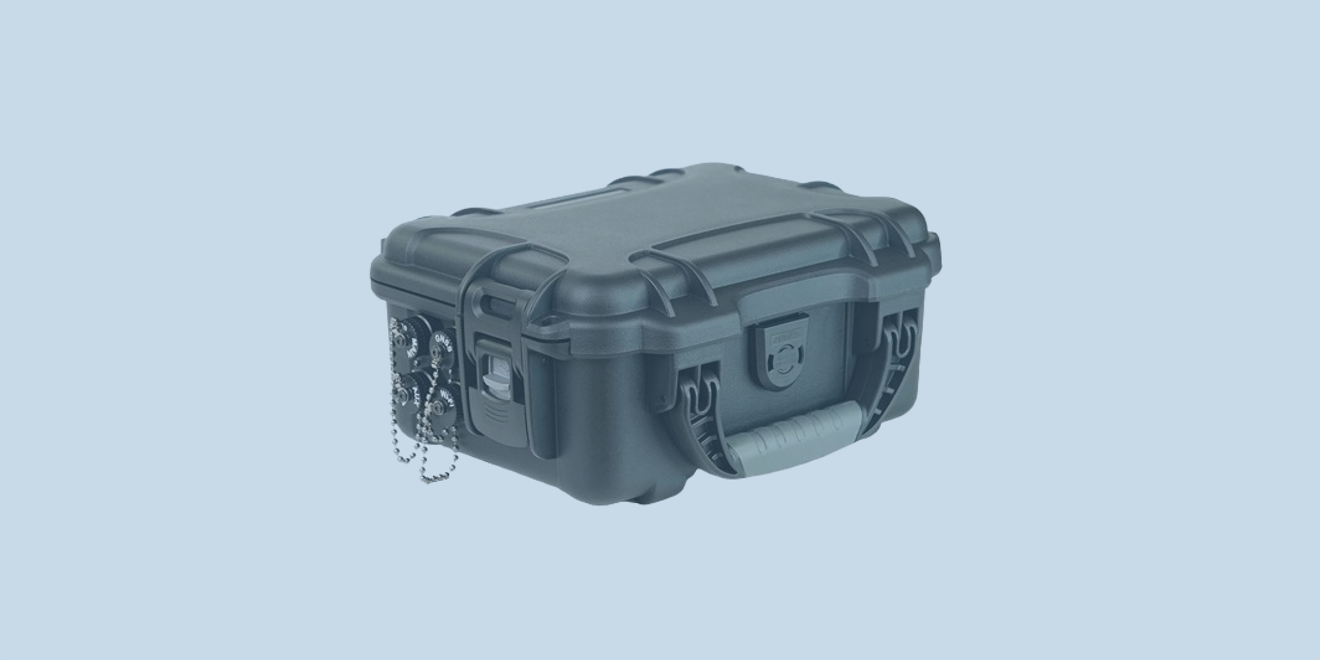

GP-Probe Case for DIN L1

Designed for field deployments, mobile monitoring setups, temporary GNSS interference detection zones, and offline data collection.

GP-Probe Case for DIN L1 is an IP66-rated protective enclosure specifically designed for the GP-Probe DIN L1 GNSS interference detector. Available in two configurations — 4G Kit and PC Kit — it provides reliable operation in harsh environments for both remote and offline use cases.

• IP66-rated protection against water and dust
• Removable 20,000 mAh power bank, certified for air travel
• Flexible connectivity options:
o 4G Kit: Teltonika RUT241 router for real-time data streaming to GP-Cloud
o PC Kit: Built-in BeagleV-Ahead micro-PC for standalone data logging
• External antenna connections: GNSS, 4G, Wi-Fi
• USB Type-C power input for charging or external power sources (e.g., solar panels)
• Quick access to internal components for maintenance and battery replacement

GP-Probe Case for DIN L1 – 4G Kit
SKU: GPP/CASE/DINL1/4G/Kit
Mobile GNSS interference monitoring with continuous real-time data transmission to GP-Cloud.
• GP-Probe DIN L1 – PPS BL RL SCR
• 20,000 mAh Power Bank (Sandberg PD 20W 20000)
• 4G/Wi-Fi Router (Teltonika RUT241)
• Two 4G Antennas
• One Wi-Fi Antenna
• Magnetic GNSS Antenna (3-meter cable)
Note: GP-Cloud subscription/license is sold separately.

GP-Probe Case for DIN L1 – PC Kit
SKU: GPP/CASE/DINL1/PC/Kit
Standalone GNSS interference detection with local data logging. No internet required.
• GP-Probe DIN L1 – PPS BL RL SCR with software options:
o OSP: Onboard Signal Processing
o STREAM: Raw GNSS Data Streaming
• 20,000 mAh Power Bank (Sandberg PD 20W 20000)
• Micro-PC with integrated Wi-Fi hotspot for direct local access
• 128 GB MicroSD card for up to 3 months of data storage
• One Wi-Fi Antenna
• Magnetic GNSS Antenna (3-meter cable)

Note: The GP-Probe Case for DIN L1 can also be supplied without the probe for users who already own the sensor. This option is available upon special request — please contact our team for details.

Application Scenarios

GP-Probe Case DIN L1 – 4G Kit
Real-time remote monitoring via GP-Cloud
• Temporary GNSS monitoring during events Ideal for deployment at drone shows, airshows, or public gatherings. Place units around the perimeter and receive real-time interference alerts in GP-Cloud.
• Field research and equipment testing Use in mobile test campaigns to evaluate GNSS performance or to investigate interference hotspots.
• Monitoring along critical infrastructure Temporary or semi-permanent deployment along highways, railways, or near airports and seaports to detect vehicle-based or localized jamming.
• Quick-response deployment in high-risk areas Portable solution for border regions, conflict zones, or areas with known GNSS disruptions.
• Demonstration and pilot projects Fast and easy setup for customer demonstrations, evaluations, or pilot deployments—no tools required.

GP-Probe Case DIN L1 – PC Kit
Offline operation with local data logging and Wi-Fi access
• GNSS monitoring in remote areas with no internet Fully autonomous solution for rural, mountainous, or infrastructure-poor locations.
• GNSS vulnerability testing and signal recording Ideal for capturing interference scenarios or testing GNSS equipment in the field.
• Post-incident data collection Use for temporary deployment in sensitive zones to gather forensic-level data for later offline analysis.
• Secure environments with restricted connectivity Suitable for installations in data centers, government facilities, or any location with no external network access.
• Local access and visualization via Wi-Fi Monitor GNSS signal quality and interference in real time using a laptop or smartphone connected to the case’s internal Wi-Fi access point.
