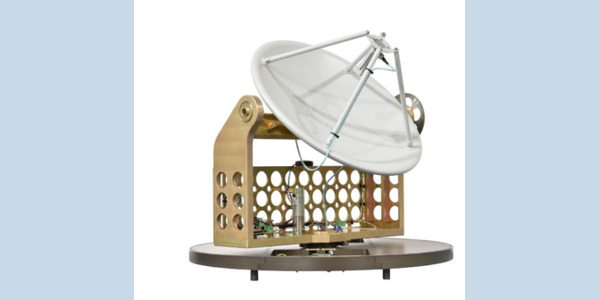

LA-360MPS-55-Q02 — Radome Enclosed Antenna Positioner for QPAR QSR-600 Antenna

Overview

The LA-360MPS-55-Q02 is a radome-enclosed antenna positioner engineered to integrate specifically with the QPAR QSR-600 antenna series. It features a robust embedded controller equipped with GPS, a digital compass, and an IMU to provide autonomous stabilization and precision tracking.

Technical Summary

• Azimuth Range: 360° (continuous available via slip ring and RF rotary joint)
• Elevation Range: -10° to +100°
• Sensors: Built-in GPS, digital compass, and user-activated IMU
• Frequency Accommodation: 6.5 to 40 GHz (C, X, Ku, K, Ka bands)

Operational Use Cases

Designed for dynamic tracking and point-to-point communication links. The system supports NORAD two-line element (TLE) program tracking, list tracking, and GEO pointing utilizing user-defined scanning and peaking tools.

Deployment Environments

The radome-enclosed design protects internal positioning mechanics, making it suitable for exposed environments where weather protection is required. Pitch, roll, and yaw stabilization via a user-activated IMU supports deployment on dynamic platforms.

Performance Metrics

• Azimuth Travel: 360°
• Elevation Travel: -10° to +100°
• Stabilization: Pitch, roll, and yaw
• Control Interfaces: Web-based UI and Command Line Interface (CLI)

Setup & Portability

Setup is managed via a web-based user interface or a command-line interface for higher-level system integration. Optional GPS heading units and pole mount adapters are available to facilitate deployment.

Compatibility

This positioner requires integration with a QPAR QSR-600 antenna (sold separately). It supports dual linear polarized feeds configured for simultaneous vertical and horizontal, or slant 45 polarization.

FAQs

• What type of antenna is compatible with this positioner? The positioner is explicitly designed to integrate with QPAR QSR-600 antennas operating between 6.5 and 40 GHz. The antenna payload is not included.
• How does an embedded controller aid in antenna positioning? Positioners equipped with embedded controllers process data from onboard sensors like GPS and compasses to calculate coordinates autonomously. Software uses this telemetry to acquire, track, and peak the signal to maintain high-data-rate communications links.
• What mounting hardware is required for deployment? Optional pole mount adapters are available upon request. Verify specific physical dimensions, load capacities, and attachment requirements with the manufacturer's datasheet prior to installation.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).

Video Notes

A demonstration of the web-based user interface detailing NORAD TLE program tracking and GEO pointing configuration would assist integrators in understanding the software capabilities.
