LinkAlign-360EER-10 — Auto Acquisition Antenna Positioner

Overview

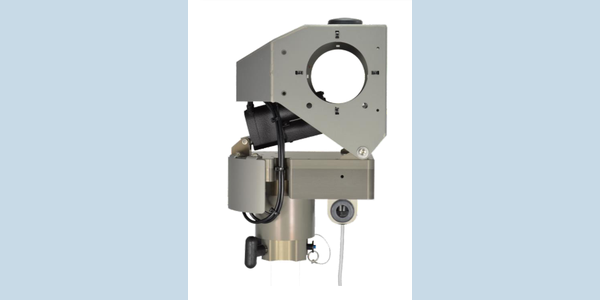

The LinkAlign-360EER-10 by Nextmove Technologies is an auto-acquisition Power over Ethernet (PoE) antenna positioner. It is designed to automatically point and peak directional antennas for microwave line-of-sight communications.

Technical Summary

• Payload Capacity: Up to 45 lbs (20.4 kg)
• Travel Range: 360° Azimuth, +/- 10° Elevation
• Targeting Hardware: Built-in GPS and digital compass
• Control Interface: Web-based UI with stored location database
• Power: Power over Ethernet (PoE)

Operational Use Cases

• Tactical communication and data link deployments
• Automated alignment for microwave line-of-sight networks
• Rapid field targeting utilizing recalled stored locations and radio signal strength

Deployment Environments

• Fixed site and tactical field installations
• Mast-mounted setups requiring robust automated alignment

Performance Metrics

• Azimuth Range: 360°
• Elevation Range: +/- 10°
• Payload Match: Typically paired with 1-2 ft antennas
• Peak Optimization: Final auto-peak driven by radio signal strength

Setup & Portability

The unit features a standard clamp assembly for a 2-inch diameter mast. Its integration of PoE and a full-featured web-based interface simplifies remote configuration and field deployment.

Compatibility

Compatible with directional antennas and payloads weighing up to 45 lbs (20.4 kg). Requires integration with a radio system that can provide signal strength feedback for the automated peaking function.

FAQs

• Why use an automated positioner for a directional antenna rather than an omnidirectional antenna? While omnidirectional antennas broadcast in all directions, directional antennas focus signals for reduced interception risk. A positioner automates the precise alignment required by directional antennas, streamlining the setup of secure communications.
• What is the maximum payload capacity of this positioner? It accommodates payloads up to 45 lbs (20.4 kg) and is typically paired with 1-2 foot antennas.
• How do automated targeting tools assist remote deployments? Hardware engineered for demanding tactical conditions can simplify setup in remote, off-grid environments. Built-in GPS and compass modules allow operators to establish communication links quickly without relying on manual alignment.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).

Video Notes

Consider a brief demonstration showing the web-based user interface, specifically highlighting the stored locations database and the final auto-peak process using radio signal strength.
