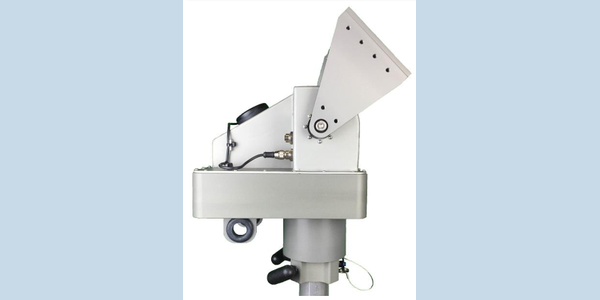

LinkAlign-360FER-22 — Auto Acquisition Antenna Positioner

Overview

The LinkAlign-360FER-22 is a Power Over Ethernet (PoE) antenna positioner engineered to automatically point and peak directional antennas for microwave line-of-sight and satellite communications. It supports tactical and fixed-site deployments with a suite of automated acquisition features.

Technical Summary

• Payload Capacity: Up to 40 lbs (18.15 kg)
• Power: Power Over Ethernet (PoE)
• Antenna Sizing: Typically pairs with 2-foot or smaller antennas
• Sensors: Built-in GPS and digital compass
• Control: Web-based user interface with stored locations database and signal strength auto-peaking

Operational Use Cases

• Establishing microwave line-of-sight communications
• Aligning directional antennas for satellite communications
• Supporting tactical data links requiring rapid link acquisition

Deployment Environments

Suitable for fixed-site installations and tactical environments. The positioner mounts to a standard 2-inch diameter mast using included clamps and can adapt to varied field requirements using optional tripods, tabletop mounts, and transit cases.

Performance Metrics

Provides independent articulation across broad azimuth and elevation travel ranges to manage payloads up to 40 lbs (18.15 kg). It executes final pointing optimization using radio signal strength auto-peaking.

Setup & Portability

Powered via PoE to simplify cabling. The system standardizes on a 2-inch mast clamp and offers optional accessories such as polarization rotators, radio/antenna adapter brackets, joysticks, and transit cases for modular field setup.

Compatibility

Compatible with standard 2-inch diameter masts and typically supports directional antennas up to 2 feet in diameter. Verify compatibility of specific radio and antenna interfaces with the available adapter brackets prior to integration.

FAQs

• Why use a positioner with a directional antenna for tactical communications? Directional antennas reduce the risk of interception compared to omnidirectional antennas by focusing energy toward the receiver. An automated positioner enables the precise alignment required to establish these secure communication links.
• How does the positioner optimize the communication link? The system utilizes a built-in GPS and digital compass for rapid initial pointing. It then performs a final auto-peak adjustment based on the radio signal strength to maximize link performance.
• What mounting hardware is utilized for deployment? The unit includes standard clamps for a 2-inch diameter mast. Confirm integration requirements if deploying with optional accessories such as tripods, tabletop mounts, or adapter brackets.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).
