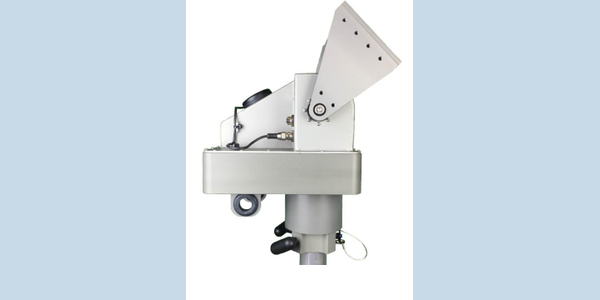

LinkAlign-360FER-30 — Auto Acquisition Antenna Positioner

Overview

The LinkAlign-360FER-30 is a Power Over Ethernet (PoE) auto-acquisition antenna positioner designed to automatically point and peak directional antennas. It is optimized for establishing and maintaining microwave line-of-sight and satellite communications, including geostationary positioning and inclined orbit tracking.

Technical Summary

• Actuation: Azimuth and Elevation (Az-El)
• Travel Range: Azimuth 440° (±220°), Elevation 140° (+120°/-20°)
• Payload Capacity: Up to 70 lbs (31.8 kg)
• Sensors: Built-in GPS and digital compass
• Control: PoE-driven with a web-based user interface

Operational Use Cases

• Satellite Communications: Facilitates geostationary satellite positioning and continuous inclined orbit tracking.
• Microwave Line of Sight: Automatically aligns and optimizes directional data links.
• Automated Link Maintenance: Uses threshold repeaking to continuously monitor signal quality and automatically realign the connection if needed.

Deployment Environments

Designed for fixed site and deployable tactical operations. The positioner accommodates diverse deployment environments through optional tripod, quadpod, and tabletop mounting configurations.

Performance Metrics

• Azimuth Travel Range: 440° (±220°)
• Elevation Travel Range: 140° (+120° to -20°)
• Maximum Payload: 70 lbs (31.8 kg)

Setup & Portability

The system utilizes built-in GPS and a digital compass to enable rapid pointing. A stored location database in the web interface simplifies recalling known target coordinates, while optional mounting accessories and polarization rotators offer field setup flexibility.

Compatibility

The positioner interfaces directly with compatible radios or satellite modems to monitor signal strength for auto-peaking. It is typically paired with 2-foot to 3-foot directional antennas.

FAQs

• What is threshold repeaking? Threshold repeaking allows the positioner to interface directly with a radio or satellite modem to monitor signal strength. If the signal degrades, the system automatically realigns the antenna to restore maximum link quality.
• What payload capacity does this positioner support? The system supports payloads up to 70 lbs (31.8 kg). It is typically paired with directional antennas ranging from 2 to 3 feet in diameter.
• How does the positioner acquire initial target alignment? Initial alignment utilizes a built-in GPS and digital compass, combined with a stored location database. Final peaking is achieved automatically using radio signal strength feedback.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).

Video Notes

A demonstration of the web-based UI during a live auto-peaking and threshold repeaking event would clearly illustrate the automated alignment capabilities.
