LinkAlign-360FER-55 — Auto Acquisition Antenna Positioner

Overview

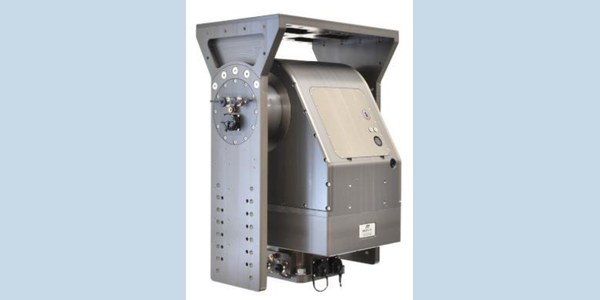

The LinkAlign-360FER-55 by Nextmove Technologies is an auto-acquisition Az-El antenna positioner engineered for microwave Line of Sight (LoS) and satellite communications. It supports heavy payloads up to 500 lbs and features Power Over Ethernet (PoE) operation alongside a built-in GPS and digital compass for rapid, accurate pointing.

Technical Summary

• Payload Capacity: Up to 500 lbs (226.8 kg)
• Azimuth Range: 440° (±220°)
• Elevation Range: 120° (+120°/0°)
• Power: Power Over Ethernet (PoE) with optional DC input
• Typical Antenna Size: 4 to 6 feet

Operational Use Cases

Designed for high-capacity data links and precise positioning, this system is ideal for establishing microwave LoS networks and supporting satellite communications, including both geo-stationary positioning and inclined orbit tracking.

Deployment Environments

Suitable for fixed site and tactical deployments. The positioner can be integrated into permanent infrastructure or fielded using optional quadpods and transit cases for rapid-response transportable operations.

Performance Metrics

• Alignment: Automated pointing using integrated GPS, digital compass, and web-based UI
• Optimization: Threshold repeaking monitors signal strength via radio/modem interface for automatic realignment
• Targeting: Stored locations database permits rapid recall of known target or satellite slot locations

Setup & Portability

Installation is streamlined via a single-cable PoE connection and an intuitive web-based interface. Optional accessories, including a quadpod, transit case, and custom antenna adapter brackets, facilitate transport and mechanical integration.

Compatibility

The system interfaces directly with radios or satellite modems to leverage received signal strength for auto-peaking. It integrates easily with standard PoE infrastructure and typically accommodates 4-foot to 6-foot directional antennas.

FAQs

• What payload capacity does this positioner support? It accommodates heavy payloads up to 500 lbs (226.8 kg) and is typically paired with 4 to 6-foot directional antennas.
• How does the threshold repeaking feature operate? It interfaces directly with a connected radio or satellite modem to monitor signal strength. If the signal drops, the positioner automatically realigns the antenna to maintain maximum link quality.
• What power and control connections are required? The primary connection is Power Over Ethernet (PoE), which supplies both power and control network access, though an optional DC input is also available.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).
