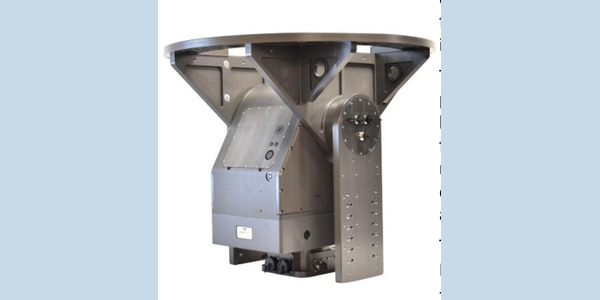

LinkAlign-360FER-56-PRI — Auto Acquisition Antenna Positioner

Overview

The LinkAlign-360FER-56-PRI is a Power Over Ethernet (PoE) auto-acquisition antenna positioner engineered to automatically point and peak directional antennas. It supports microwave Line of Sight (LoS) and satellite communications, including geo-stationary positioning and inclined orbit tracking, while managing high-capacity payloads.

Technical Summary

• Payload Capacity: Up to 500 lbs (226.8 kg)
• Azimuth Range: 440° (+/-220°)
• Elevation Range: +120°/0°
• Power: Power Over Ethernet (PoE)
• Sensors: Built-in GPS and digital compass

Operational Use Cases

• Microwave Line of Sight (LoS) communications
• Satellite communications (SATCOM)
• Geo-stationary satellite positioning
• Inclined orbit tracking

Deployment Environments

This positioner is suitable for field deployments requiring automated tracking and peaking. Optional accessories such as a quadpod and transit case support portable and temporary field operations.

Performance Metrics

• Maximum Payload: 500 lbs (226.8 kg)
• Azimuth Coverage: 440° (+/-220°)
• Elevation Coverage: +120° to 0°
• Tracking Control: Closed-loop threshold repeaking based on radio signal strength

Setup & Portability

A full-featured web-based user interface includes a stored locations database for rapid recall of known targets or satellite slots. Automated pointing relies on the built-in GPS and digital compass. Optional quadpods, transit cases, and antenna adapter brackets are available to support deployment and transport.

Compatibility

• Designed specifically for pairing with Pacific Radomes PRI-8 and PRI-12 antennas.
• Interfaces directly with communication radios and satellite modems for signal strength monitoring.

FAQs

• What is the maximum payload capacity of the LinkAlign-360FER-56-PRI? This positioner supports payloads up to 500 lbs (226.8 kg). It is explicitly tailored to handle large directional antennas like the Pacific Radomes PRI-8 and PRI-12.
• How does threshold repeaking maintain the communications link? The positioner interfaces directly with a connected radio or satellite modem to monitor signal strength. It automatically realigns the antenna when the signal drops below a set threshold to maximize link performance.
• What sensors are utilized for automated pointing? Auto-acquisition positioners rely on embedded controllers and onboard sensors to establish communication links. This unit incorporates a built-in GPS and digital compass to ensure rapid and accurate target acquisition.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).
