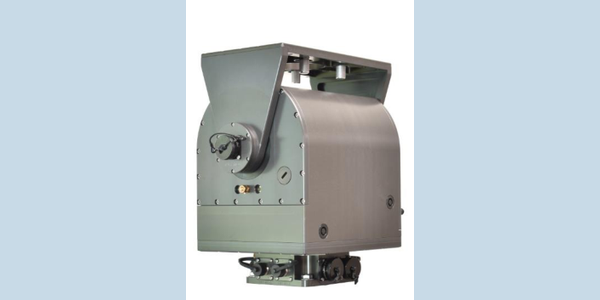

LinkAlign-360MPT-30 — Antenna Positioner

Overview

The LinkAlign-360MPT-30 by Nextmove Technologies is a Power over Ethernet (PoE) antenna positioner designed for automatic pointing and continuous tracking of directional antennas. It provides precise azimuth and elevation control for microwave line-of-sight and satellite communications, including low or medium earth orbit (LEO/MEO) tracking.

Technical Summary

• Control Interface: Embedded controller with web-based UI
• Sensors: Built-in GPS and digital compass
• Tracking Capabilities: Two-line element (TLE) set program track, stored satellite database, manual control
• Power: Power over Ethernet (PoE)
• Axis of Movement: Azimuth and Elevation (Az-El)

Operational Use Cases

Engineered for automated positioning in microwave data links, this unit supports continuous tracking of LEO and MEO satellites. It is suited for applications requiring rapid, accurate directional antenna alignment and the ability to maintain signal lock on moving orbital platforms.

Deployment Environments

Designed for both tactical field deployments and permanent fixed-site installations. The system accommodates diverse mounting scenarios using optional pole mount adapters, tripods, quadpods, and custom adapter brackets.

Performance Metrics

• Azimuth Travel: 480° (+/- 240°)
• Elevation Range: 190° (+/- 95°)
• Maximum Payload: 100 lbs (45.4 kg)

Setup & Portability

Initial alignment is accelerated by the built-in GPS and digital compass, while native PoE operation reduces cabling requirements. The fully featured web UI allows operators to configure tracking profiles rapidly without requiring proprietary software installations.

Compatibility

Ideally sized for standard 2-foot to 3-foot directional antennas. The unit integrates into standard network infrastructures via PoE and adapts to various antenna form factors or support structures using optional accessory mounts.

FAQs

• What payload capacity does this positioner support? It accommodates payloads up to 100 lbs (45.4 kg), making it ideal for positioning standard 2-foot to 3-foot directional antennas.
• How does the positioner track moving satellites? The embedded controller uses two-line element (TLE) set program tracks and a stored database to continuously follow low or medium earth orbit (LEO/MEO) satellites.
• What power supply is required for installation? The system operates natively using Power over Ethernet (PoE). Verify that the sourcing network switch or midspan injector supplies the appropriate PoE standard to drive the motors.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).
