LinkAlign-360MPT-31 — PoE Antenna Positioner for Satellite Tracking

Overview

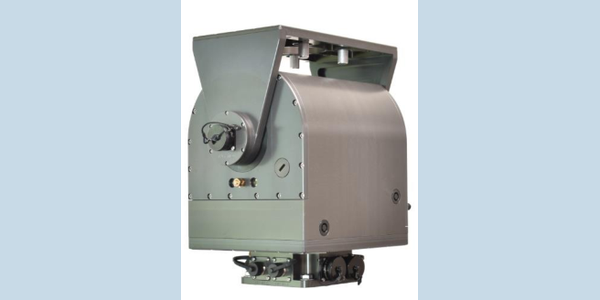

The LinkAlign-360MPT-31 is a Power Over Ethernet (PoE) antenna positioner engineered for continuous tracking applications, including microwave line-of-sight and satellite communications. It features an embedded controller with a built-in GPS and digital compass, accessible via a full-featured web-based user interface for rapid and accurate antenna pointing.

Technical Summary

Payload Capacity	100 lbs (45.4 kg)
Azimuth Range	360°
Elevation Range	+/-95°
Construction	Hard-coat anodized aluminum, stainless steel hardware
Tracking Capability	TLE program track, stored satellite database

Operational Use Cases

• Continuous tracking of Low or Medium Earth Orbit (LEO/MEO) satellites
• Microwave line-of-sight (LoS) communication alignment
• Automated directional antenna pointing and peaking

Deployment Environments

Constructed from hard-coat anodized aluminum with stainless steel hardware, this positioner is built for demanding outdoor operational environments. It supports deployment via optional pole mount adapters or temporary setups using tripods and quadpods.

Performance Metrics

• Maximum Payload: 100 lbs (45.4 kg)
• Azimuth Range of Motion: 360°
• Elevation Range of Motion: +/-95°

Setup & Portability

System setup is managed through a comprehensive web-based user interface providing manual controls, status monitoring, and a stored satellite database. Physical deployment options include available tripods, quadpods, and pole mount adapters to suit various deployment needs.

Compatibility

Typically paired with 2-to-3-foot antennas, the unit accommodates optional accessories including a polarization axis and custom antenna adapter brackets. The positioner utilizes standard Power Over Ethernet (PoE) infrastructure for combined power and data connectivity.

FAQs

• What payloads can this positioner support? This unit handles payloads up to 100 pounds (45.4 kg). It is typically paired with 2-to-3-foot directional antennas for microwave or satellite communications.
• How does the system track non-geostationary satellites? The embedded controller uses Two-Line Element (TLE) set program tracking alongside a stored satellite database. This enables automated pointing and continuous tracking of Low or Medium Earth Orbit (LEO/MEO) satellites.
• How do automated positioners maintain optimal link performance? Embedded control software interacts directly with communication radios and satellite modems to enable closed-loop tracking and peaking. Verify integration requirements with the specific modems to ensure accurate pointing and alignment.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).
