LinkAlign-360MPT-42 — Satellite Auto Acquisition and Program Tracking Positioner

Overview

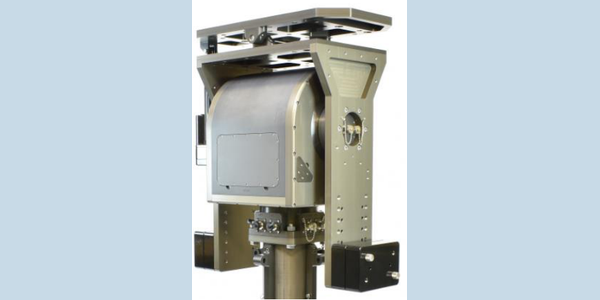

The LinkAlign-360MPT-42 is a high-capacity satellite auto-acquisition and program tracking positioner designed for directional antennas. It features an embedded antenna controller with a built-in GPS and digital compass, facilitating rapid and accurate pointing for low to medium earth orbit satellite communications.

Technical Summary

• Payload Capacity: Up to 160 lbs (72.6 kg), typically paired with 3-4 ft antennas
• Range of Motion: 360° azimuth and ±95° elevation
• Tracking: Two-line element (TLE) set program track capability
• Interfaces: Gigabit Ethernet, DC-3 GHz RF pass-through
• Power: Power over Ethernet (PoE) supported

Operational Use Cases

Engineered for data links and secure satellite communications, this positioner provides automated pointing and tracking. The stored satellite database and TLE program track capability allow operators to maintain accurate alignment with low and medium earth orbit (LEO/MEO) satellites.

Deployment Environments

Designed for fixed site and tactical platforms, the system integrates into varied ground station architectures. An optional cross elevation accessory is available to mitigate the keyhole effect during direct overhead satellite passes.

Performance Metrics

• RF Pass-Through: DC to 3 GHz
• Azimuth Travel: 360°
• Elevation Travel: ±95°
• Maximum Payload: 160 lbs (72.6 kg)

Setup & Portability

Setup is streamlined through an embedded controller and full-featured web-based user interface, allowing remote manual control and automated tracking operations. The integrated GPS and digital compass reduce the need for external alignment tools.

Compatibility

This positioner is compatible with directional antennas up to 3 to 4 feet in diameter. It integrates with network infrastructure via Gigabit Ethernet and utilizes standard PoE for power delivery.

FAQs

• What is two-line element (TLE) program tracking? TLE tracking uses standardized mathematical orbital parameters to predict the paths of low and medium earth orbit satellites. This allows the positioner controller to automatically maintain alignment as the satellite moves.
• What is the keyhole effect in satellite tracking? The keyhole effect occurs when a satellite passes directly overhead, requiring an azimuth-elevation positioner to rotate rapidly. Installing a cross-elevation accessory introduces a third axis to eliminate this tracking blind spot.
• Why use a directional antenna for tactical secure communications? Omnidirectional antennas broadcast signals in all directions, increasing interception risk. A directional antenna focuses energy along a specific path to improve security, though it requires a positioner to maintain alignment.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).
