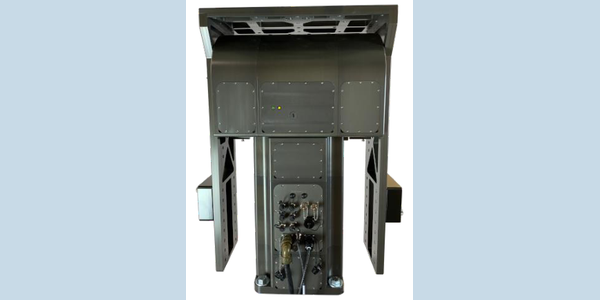

LinkAlign-360MPT-50 — LEO Satellite Tracking Positioner

Overview

The LinkAlign-360MPT-50 by Nextmove Technologies is an auto-acquisition and program-tracking antenna positioner engineered for Low Earth Orbiting (LEO) and Medium Earth Orbit (MEO) satellite applications. It features an embedded controller and robust mechanical design to accurately acquire and track dynamic orbital targets.

Technical Summary

• Payload Capacity: Up to 500 lbs (226.8 kg), including counterweights
• Travel Range: 600° azimuth and 180° (±90°) elevation
• Controller: Embedded with built-in GPS and digital compass
• Tracking: TLE (Two-Line Element) set program track capability via web UI
• Pass-Through Options: Ethernet, serial, signal, and DC-3 GHz RF
• Safety Features: Fail-safe motor brakes and automated wind stow

Operational Use Cases

Ideal for maintaining continuous communication links with LEO and MEO satellites. The stored satellite database and TLE tracking capability enable rapid auto-acquisition and precise tracking of moving orbital assets.

Deployment Environments

Designed for fixed-site installations. The system includes built-in fail-safe motor brakes and automated wind stow capabilities to protect the equipment and payload during adverse weather conditions.

Performance Metrics

• Maximum Payload: 500 lbs (226.8 kg)
• Antenna Sizing: Typically paired with 1.0 to 2.4 meter antennas
• Azimuth Travel: 600°
• Elevation Range: 180° (±90°)

Setup & Portability

Weighing 455 lbs, this positioner requires a fixed stationary mount. The embedded web-based user interface, integrated GPS, and digital compass streamline pointing and configuration without the need for a separate external hardware controller.

Compatibility

Accommodates payloads up to 500 lbs and antennas typically ranging from 1.0 to 2.4 meters. The positioner offers versatile pass-through routing for Ethernet, serial control, general signaling, and DC-3 GHz RF connections.

FAQs

• How does the positioner track moving satellites? It utilizes an embedded antenna controller with a built-in GPS, digital compass, and two-line element (TLE) program tracking to automatically acquire and follow LEO and MEO targets.
• What payload capacity does this positioner support? The positioner accommodates payloads up to 500 lbs (226.8 kg), including counterweights, making it suitable for 1.0 to 2.4-meter antennas.
• What interfaces are available for signal routing? The system provides integrated pass-through options for Ethernet, serial data, general signals, and DC-3 GHz RF connections.
