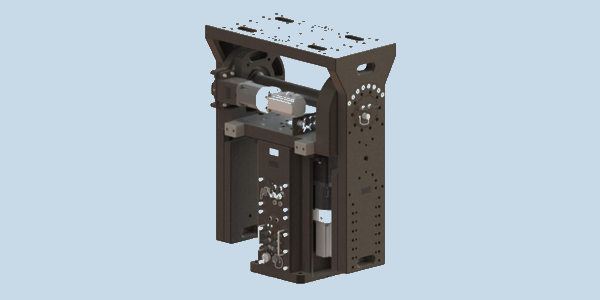

LinkAlign-360MPT-90 — Modular Positioner for LEO Satellite Tracking

Overview

The LinkAlign-360MPT-90 by Nextmove Technologies is a heavy-duty, modular positioner engineered specifically for Low Earth Orbit (LEO) and Medium Earth Orbit (MEO) satellite tracking applications. It integrates an embedded antenna controller with a built-in GPS and digital compass to enable rapid, highly accurate automated antenna pointing.

Technical Summary

• Positioner Type: Azimuth and Elevation (Az-El)
• Azimuth Range: 360°
• Elevation Range: ±90° (180° total range)
• Payload Capacity: Up to 1500 lbs (680 kg) including counterweights
• Controller: Embedded with built-in GPS and digital compass

Operational Use Cases

Optimized for data links and dynamic satellite communications, the positioner handles continuous tracking of LEO and MEO satellites. It utilizes two-line element (TLE) set program track capability and a stored satellite database to automate complex orbital tracking routines.

Deployment Environments

Suitable for tactical and fixed-site deployments. The modular construction consists of eight primary sub-assemblies (excluding counterweights), with the heaviest component weighing less than 130 lbs. This design facilitates efficient transportation to remote or temporary operational sites.

Performance Metrics

The unit supports massive payloads up to 1500 lbs (680 kg) while providing a complete 360° of azimuth rotation and 180° of elevation travel. The embedded digital compass and GPS ensure rapid initialization and high-precision pointing accuracy.

Setup & Portability

Designed for rapid deployment, the entire system can be fully assembled by two personnel in under two hours. The included web-based user interface provides immediate access to manual controls, tracking status, and configuration.

Compatibility

Typically paired with 1.2 to 2.4 meter antennas. It offers a command line interface (CLI) in addition to its web UI, allowing for direct and seamless integration into larger communication architectures and automated network management systems.

FAQs

• What orbital tracking methods are supported? The embedded controller features a stored satellite database and utilizes two-line element (TLE) set programming to enable automated tracking of LEO and MEO satellites.
• How is the positioner integrated and controlled? Operators can use the full-featured web-based user interface for manual control and status monitoring, or utilize the command line interface (CLI) for automated integration into larger systems.
• What is the maximum payload capacity? The system supports payloads up to 1500 lbs (680 kg), which includes the combined weight of the antenna, payload accessories, and necessary counterweights.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).
