LinkAlign-360RPT-10 — Auto Acquisition Antenna Positioner

Overview

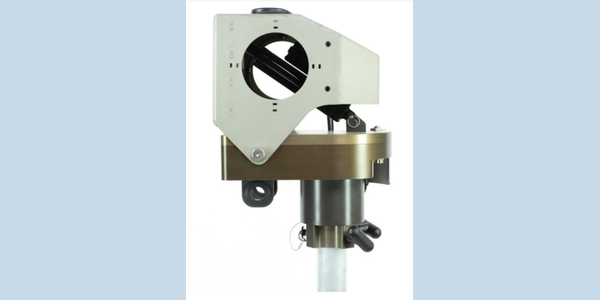

The LinkAlign-360RPT-10 is a Power Over Ethernet (PoE) auto-acquisition antenna positioner engineered to automatically point and peak directional antennas. It facilitates microwave line-of-sight (LOS) communications utilizing a built-in GPS, digital compass, and a full-featured web-based user interface for rapid and accurate targeting.

Technical Summary

• Positioning Range: 400° (±200°) Azimuth, 20° (±10°) Elevation
• Payload Capacity: Up to 45 lbs (20.4 kg)
• Power: Power Over Ethernet (PoE) with <10W standby draw
• Sensors: Built-in GPS and digital compass
• Control: Web-based user interface with stored location database

Operational Use Cases

Ideal for tactical communications and data links requiring automated, precise alignment of microwave LOS directional antennas. Operators can use the stored locations database to quickly recall known target coordinates and initiate final auto-peaking based on radio signal strength.

Deployment Environments

Suitable for fixed site and tactical deployments. Designed for integration with standard 2-inch masts, the positioner supports rapid setup and reliable targeting for point-to-point microwave communication links in challenging environments.

Performance Metrics

• Azimuth Range: 400° (±200°)
• Elevation Range: 20° (±10°)
• Maximum Payload: 45 lbs (20.4 kg)
• Standby Power Draw: <10W

Setup & Portability

This positioner mounts to standard 2-inch masts and utilizes PoE to minimize cabling requirements. It is compatible with optional tripods, tabletop mounts, and transit cases to facilitate transport and tactical deployment.

Compatibility

Typically paired with 1-foot to 2-foot directional antennas weighing up to 45 lbs (20.4 kg). Optional radio adapter brackets, antenna adapter brackets, and polarization axes are available to support diverse microwave communication payloads.

FAQs

• Why pair an automated positioner with a directional antenna for tactical communications? Directional antennas concentrate RF energy, reducing the risk of signal interception compared to omnidirectional broadcasts. An automated positioner addresses the alignment challenge created by narrower beamwidths.
• What is auto-peaking in microwave line-of-sight communications? Auto-peaking fine-tunes antenna alignment to achieve the maximum possible radio signal strength. The positioner uses stored coordinates for initial pointing, then actively adjusts positioning to optimize the link.
• How is the positioner powered and controlled? The system uses Power Over Ethernet (PoE) to supply power and network connectivity over a single cable. Operators manage pointing, peaking, and target coordinates through a built-in web-based interface.
