LinkAlign-360RPT-F20 — Auto Acquisition Antenna Positioner

Overview

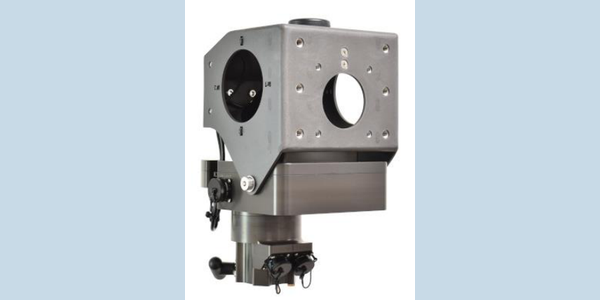

The LinkAlign-360RPT-F20 by Nextmove Technologies is a Power Over Ethernet (PoE) Az-El antenna positioner designed to automatically point and peak directional antennas for microwave line-of-sight communications. Its non-rotating base features ethernet pass-thru connectors, securely eliminating cable wrap challenges during operation.

Technical Summary

• Travel Range: 400° azimuth (+/-200°); 20° elevation (+/-10°)
• Payload Capacity: Up to 90 lbs (40.8 kg)
• Antenna Support: Accommodates 2 to 3-foot antennas
• Sensors: Built-in GPS and digital compass
• Mounting Interface: Clamps to standard 2-inch diameter mast

Operational Use Cases

Engineered for tactical communications and data links, this positioner automates the alignment of microwave line-of-sight connections. It utilizes a full-featured web-based user interface with a stored locations database for rapid targeting, allowing operators to easily recall known target coordinates.

Deployment Environments

Suitable for fixed site and tactical deployments. The system natively clamps to a 2-inch mast, with optional tabletop mounts and transit cases available to support various field requirements.

Performance Metrics

• Azimuth Travel: 400° (+/-200°)
• Elevation Range: 20° (+/-10°)
• Maximum Payload: 90 lbs (40.8 kg)

Setup & Portability

Setup relies on the built-in GPS and digital compass for rapid acquisition, utilizing PoE to simplify power and data cabling. The non-rotating base design prevents cable tangles during rotation, and optional transit cases can be utilized for safe transport between field sites.

Compatibility

Designed to support 2 to 3-foot directional antennas. The mounting hardware clamps to a standard 2-inch diameter mast. System control is managed via a standard web interface over Ethernet.

FAQs

• What is the purpose of an automated azimuth-elevation positioner in microwave line-of-sight networks? Positioners align highly directional antennas to establish point-to-point communication links. Automated systems utilize target coordinates and integrated sensors to point the payload without requiring manual adjustments at the mast.
• How does this positioner manage payload cabling during rotation? The system utilizes a stationary base containing the Power over Ethernet (PoE) input and Ethernet pass-through connectors. Because this base does not rotate relative to the mast, it prevents cable wrap during azimuth travel.
• How does the system optimize alignment after initial pointing? Following coordinate-based pointing using the integrated GPS and digital compass, the positioner refines the alignment. It executes an auto-peak sequence that adjusts the azimuth and elevation based on the received radio signal strength.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).
