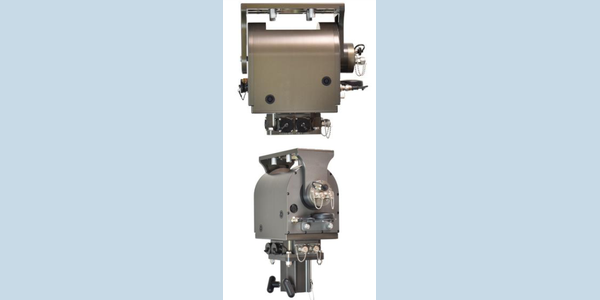

LinkAlign-360VPR-22 — Auto Acquisition Antenna Positioner

Overview

The LinkAlign-360VPR-22 is a Power Over Ethernet (PoE) antenna positioner engineered to automatically point and peak directional antennas. Built from the ground up for microwave, millimeter wave line of sight (LOS), and satellite communications, it provides rapid, accurate targeting using integrated sensors and software.

Technical Summary

• Payload Capacity: Up to 50 lbs (22.68 kg)
• Azimuth Range: 440° (+/- 220°)
• Elevation Range: 190° (+/- 95°)
• Sensors: Built-in GPS and digital compass
• RF Pass-Thru: DC-3 GHz

Operational Use Cases

• Microwave and millimeter wave line of sight (LOS) communications
• Satellite communications link establishment
• Automated remote antenna pointing and tracking

Deployment Environments

Designed for rapid deployment scenarios, the unit accommodates optional mast adapters and tripods for versatile field mounting. It operates seamlessly in environments requiring automated acquisition of known remote targets.

Performance Metrics

• Standard Azimuth Movement: 440° (+/- 220°)
• Standard Elevation Movement: 190° (+/- 95°)
• Payload Support: Up to 50 lbs (22.68 kg)
• RF Pass-Thru Rating: DC-3 GHz

Setup & Portability

The system utilizes Power Over Ethernet (PoE) to simplify cabling and deployment. Configuration and control are managed through a full-featured, web-based user interface that includes a stored locations database for quick recall of target coordinates.

Compatibility

The LinkAlign-360VPR-22 is typically paired with directional antennas up to 2 feet in diameter. It interfaces with connected radios or satellite modems to leverage signal strength data for the final automated peaking sequence. Optional upgrades include high-resolution encoders, continuous 360° azimuth rotation, and polarization axis control.

FAQs

• What size and weight of antennas can this positioner support? It handles payloads up to 50 lbs (22.68 kg) and is typically paired with directional antennas up to 2 feet in diameter.
• How does the positioner optimize communication links? Embedded software utilizes built-in GPS and compass data to target known locations, followed by a final auto-peak that interacts directly with the radio's signal strength for accurate pointing.
• Can the positioner rotate continuously? Standard operation provides 440° of azimuth range. Continuous 360° azimuth rotation is available as an option and requires a slip ring and RF rotary joint.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).
