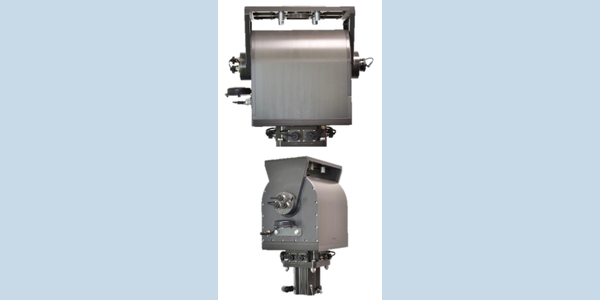

LinkAlign-360VPR-30 — Auto Acquisition Antenna Positioner

Overview

The LinkAlign-360VPR-30 by Nextmove Technologies is a Power Over Ethernet (PoE) auto-acquisition antenna positioner designed to automatically point and peak directional antennas. It supports microwave, millimeter-wave, and satellite communications by leveraging built-in sensors and automated alignment features to establish reliable data links.

Technical Summary

• Control Axes: Azimuth and Elevation (Az-El)
• Azimuth Range: 360 degrees (up to 440 degrees total travel)
• Elevation Range: +/-95 degrees (190 degrees total)
• Payload Capacity: Up to 100 lbs (45.4 kg)
• Sensors: Built-in GPS and digital compass
• Power Interface: Power Over Ethernet (PoE)

Operational Use Cases

Designed for establishing and maintaining critical data links, this positioner is ideal for line-of-sight microwave and millimeter-wave links, as well as satellite communications. Its stored locations database allows operators to quickly recall known target coordinates and execute an auto-peak sequence using radio signal strength for optimal connectivity.

Deployment Environments

Suitable for both fixed site and tactical deployments. The robust design accommodates 2 to 3-foot antennas, while optional slip ring and RF rotary joint configurations allow for continuous azimuth rotation in dynamic environments.

Performance Metrics

• Maximum Payload: 100 lbs (45.4 kg)
• Azimuth Travel: 440 degrees
• Elevation Travel: 190 degrees (+/-95 degrees)
• Accuracy Enhancements: Optional encoders available to improve pointing accuracy and feedback resolution in both axes.

Setup & Portability

Installation is simplified using Power Over Ethernet (PoE) to combine power and network connectivity in a single cable. Configuration and pointing control are managed entirely through a full-featured, built-in web interface, removing the need for external software installations.

Compatibility

• Antennas: Typically paired with 2-3ft directional antennas.
• Payload Weights: Accommodates payloads up to 100 lbs (45.4 kg).
• Control: Operates via standard PoE and built-in web UI.
• Rotary Enhancements: Compatible with optional slip rings and RF rotary joints for continuous azimuth motion.

FAQs

• What is the payload capacity of this antenna positioner? It supports payloads up to 100 lbs (45.4 kg) and is typically paired with 2 to 3-foot directional antennas.
• How does the positioner acquire and align with targets? It utilizes a built-in GPS and digital compass for initial pointing. The web-based interface enables target recall, followed by an automated peak routine using radio signal strength.
• Can the positioner rotate continuously in azimuth? Standard models provide 360 to 440 degrees of azimuth travel. Continuous azimuth range of motion is available as an option by utilizing a slip ring and RF rotary joint.
