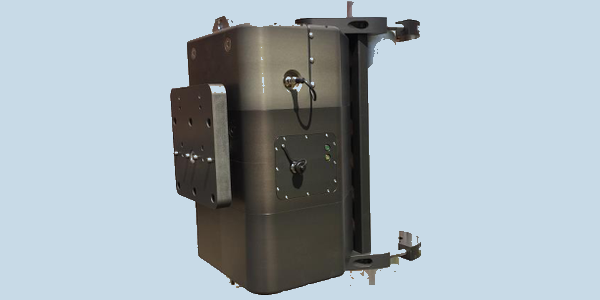

LinkAlign-60EBP-30 — Auto Link Maintenance Antenna Positioner

Overview

The LinkAlign-60EBP-30 is a Power Over Ethernet (PoE) antenna positioner engineered to automate the alignment and peaking of directional side arm mount antennas. It is designed to maintain high Quality of Service (QoS) for point-to-point microwave (11-29 GHz) and millimeter-wave (30-90 GHz) links. By actively compensating for environmental disturbances, it eliminates the downtime and recurring costs associated with manual realignment.

Technical Summary

This positioner provides +/-30° of azimuth and elevation range with a high-precision feedback resolution of 0.01°. It supports payloads up to 300 lbs (136.07 kg), accommodating typical 3 to 4-foot side arm mount antennas. Operations are powered entirely via PoE, and alignment is managed automatically using software or manually on demand through network controls.

Operational Use Cases

Ideal for data links and secure communications requiring continuous optimization. It addresses the challenges of narrow beamwidths in 60 GHz to 80 GHz E-Band radios, maintaining point-to-point link integrity despite mast thermal expansion, wind events, or other structural disturbances.

Deployment Environments

Designed for fixed site infrastructure. The system is deployed on communication towers and masts where environmental conditions cause structural shifting, requiring active compensation to maintain critical line-of-sight data links.

Performance Metrics

• Azimuth Range: +/-30°
• Elevation Range: +/-30°
• Feedback Resolution: 0.01°
• Maximum Payload: 300 lbs (136.07 kg)
• Frequency Support: 11-29 GHz and 30-90 GHz

Setup & Portability

Installation is simplified through Power Over Ethernet (PoE) connectivity, requiring only a single cable for power and network control. The unit interfaces directly with side arm mount antennas, with automated software configuration based on user-defined signal thresholds.

Compatibility

Compatible with directional side arm mount antennas operating across X, Ku, K, Ka, V, W, and mm bands. It integrates with network systems capable of providing Received Signal Strength Indicator (RSSI) feedback for automated peaking.

FAQs

• Why use a positioner for millimeter-wave communications? Millimeter-wave radios operating in the 60 GHz to 80 GHz range produce very narrow beamwidths. Precise pointing is required to maintain links during structural shifting caused by wind or thermal expansion.
• How do directional antennas impact communication security? Directional antennas reduce the exposure of broadcast signals compared to omnidirectional antennas, limiting interception risks. However, their narrow beams require stable mounting and precise alignment to maintain reliable point-to-point connections.
• How is the automatic link maintenance configured? Automated peaking is driven by Received Signal Strength Indicator (RSSI) threshold settings. Once aligned, software continuously monitors the RSSI and triggers adjustments to optimize the connection over the network.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).
