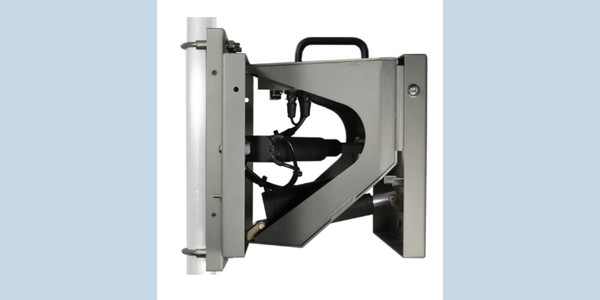

LinkAlign-60LPT-10 — Auto Acquisition Antenna Positioner

Overview

The LinkAlign-60LPT-10 is a Power Over Ethernet (PoE) antenna positioner engineered to automatically point and peak directional antennas for microwave line-of-sight communications. It integrates a built-in GPS and digital compass to enable rapid, accurate antenna alignment for reliable data links.

Technical Summary

• Payload Capacity: Up to 20 lbs (9.1 kg)
• Supported Antennas: Typically paired with 1-foot to 2-foot directional antennas
• Azimuth Range: ±30 degrees
• Elevation Range: ±7.5 degrees
• Power Interface: Power over Ethernet (PoE)
• Navigation Sensors: Built-in GPS and digital compass

Operational Use Cases

Designed for establishing and maintaining microwave line-of-sight communications, this positioner supports both fixed-site networks and tactical deployments. The stored locations database allows operators to rapidly recall known target coordinates before initiating a final auto-peak process.

Deployment Environments

The positioner accommodates a variety of field environments and installation methods. It is compatible with optional accessories designed for diverse deployments, including tripods, tabletop mounts, and rugged transit cases for safe transport.

Performance Metrics

• Positioning Range: Provides targeted ±30° azimuth and ±7.5° elevation adjustment.
• Load Handling: Actuates communication payloads up to 20 lbs reliably.
• Auto-Peaking: Utilizes radio signal strength indicator (RSSI) for precise final alignment.

Setup & Portability

The system is managed via a full-featured web-based user interface, simplifying configuration without requiring specialized software. Transit cases are available to enhance portability, and optional joysticks provide alternative manual control during setup.

Compatibility

This positioner is generally paired with 1- to 2-foot microwave antennas. Compatibility can be expanded using optional hardware, including specific radio adapter brackets, antenna adapter brackets, and polarization rotators to suit various payload configurations.

FAQs

• What is the maximum payload capacity for this positioner? The positioner supports antenna payloads weighing up to 20 lbs (9.1 kg). It is typically paired with directional antennas ranging from 1 to 2 feet in diameter.
• How does the auto-peaking function operate? The system utilizes built-in GPS and a digital compass to locate a stored target coordinate. It then performs a final auto-peaking routine using the connected radio's signal strength to optimize the link.
• What power source is required to operate the positioner? The positioner is powered entirely via Power over Ethernet (PoE). Verify that your network switch or PoE injector meets the specific power requirements listed in the datasheet.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).

Video Notes

A video demonstrating the web-based user interface, the stored location recall, and the auto-peaking sequence using radio signal strength would be highly beneficial. Showing the unit mounted on a tripod with a 2-foot antenna could clearly illustrate the scale and setup process.
