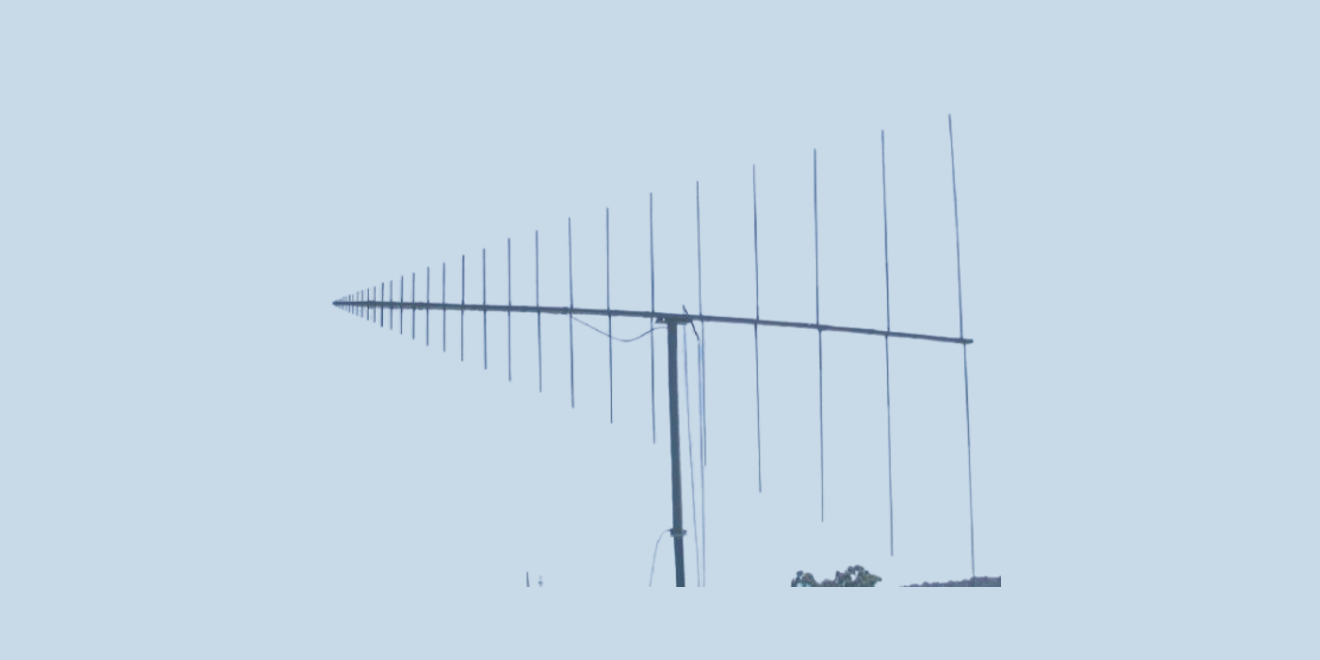

LPDA-A0050 — High-Power LPDA Antenna

The LPDA-A0050 is a directional log-periodic dipole array primarily designed for EW high-power applications to cover the 30 MHz to 2500 MHz frequency band with a typical gain of 7 dBi. The polarisation is adjustable between vertical and horizontal without lowering the mast.
For quick deployment applications this antenna is supplied with a boom that breaks into three sections and all the elements can be removed and stored in a roll-up canvas bag for compact storage. The antenna can be assembled and erected within 10 min by two people. For fixed installations the boom and elements are configured for a more permanent erection.
PRODUCT FEATURES:
• Wideband frequency 30 MHz to 2500 MHz
• Low VSWR
• High gain of typically 7 dBs over 90% of the band
• Rugged construction and compact packaging for quick deployment applications
• Easy to assemble and disassemble (< 10 minutes for two people)
• Also configured for fixed applications
