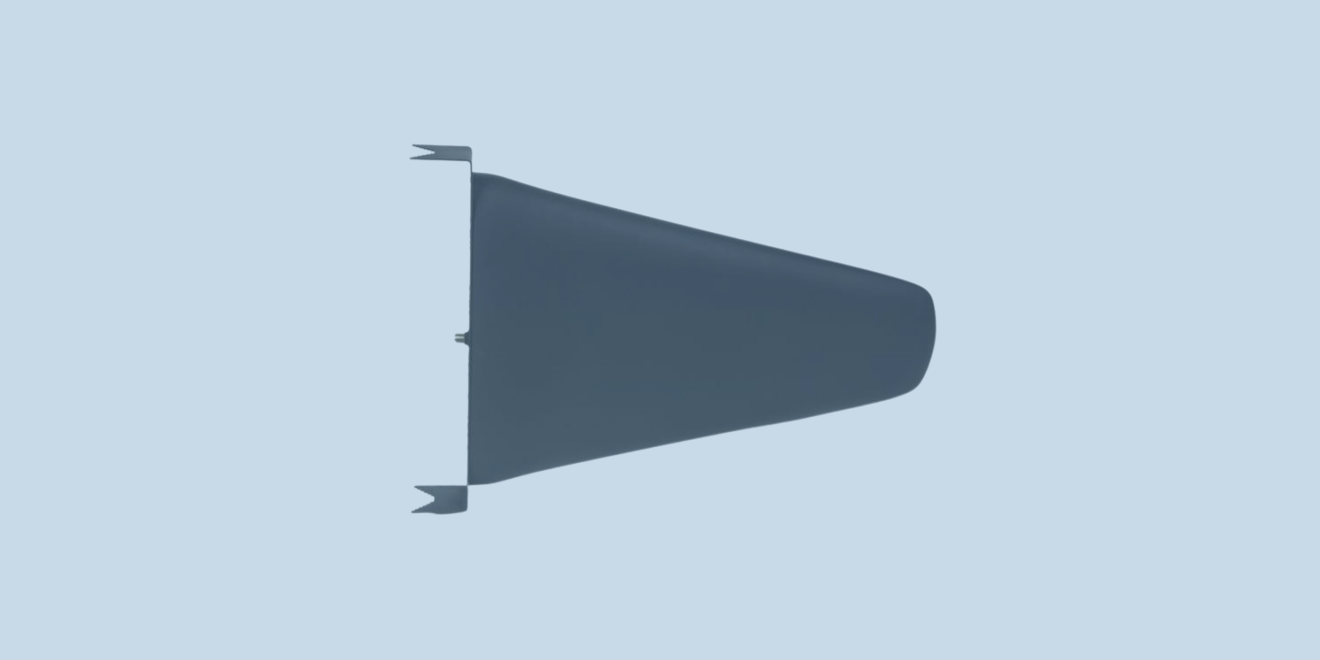

LPDA-A0052 — High-Power LPDA Antenna

Interested in learning more about this product?

This directional log-periodic dipole array (LPDA) is primarily designed for high-power transmitting applications. It covers a frequency band of 800 to 3000 MHz with an average gain of 12 dBi. The antenna is supplied with hardware to mount onto a 60 mm mast.
The antenna consists of two high gain log-periodic antennas in a common radome. The antennas are connected in phase using a power divider. This allows high gain within a relatively small radome.

PRODUCT FEATURES:

  • Wideband frequency 800 to 3000 MHz
  • VSWR < 2:1
  • High gain: 12 dBi average
  • Feed power handling:
    • 500 W CW (0.8 to 2 GHz)
    • 200 W CW (2 to 3 GHz)
  • Rugged construction


PRODUCT APPLICATIONS:

  • Wideband jamming
  • Covers the GSM-800, 900, 1800, 1900 and 3G frequency bands
