OMNI-A0333 — Compact Monitoring Antenna
Interested in learning more about this product?
The OMNI-A0333 is a compact monitoring antenna. Supplied in active, active with passive bypass and passive versions, it allows monitoring over
the full 20 to 6000 MHz band.
The active version of the antenna includes amplification to help improve sensitivity. The antenna is best utilised with the MISC-A0022 power supply which injects DF power into the antenna to power the amplifier. The -01 features a passive-bypass mode which is engaged when the antenna is not powered. In this mode, the antenna is completely passive, allowing for low distortion measurements in the presence of high incident fields.

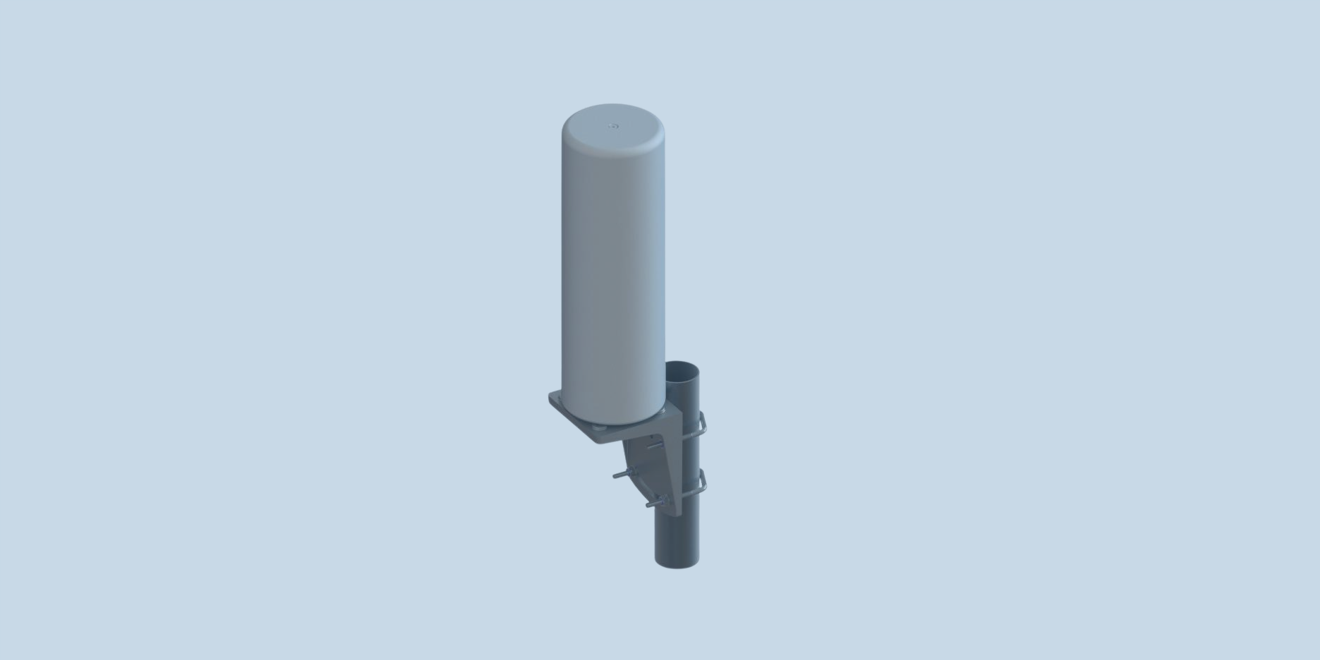

Mast-mounting with the supplied bracket allows the antenna to be permanently mounted outdoors. The antenna is waterproof and UV stabilised, it can be used as a compact antenna for a permanent monitoring system.
The antenna gain can be characterised if required for field strength monitoring requirements.
PRODUCT FEATURES:
• Ultra-wideband 20 to 6000 MHz
• Very good sensitivity
• Low profile compared to passive alternatives
• IP65
APPLICATION AREAS:
• General spectrum monitoring
• Suitable for mast-mount applications
RELATED PRODUCTS:
• MISC-A0022 power supply
