RM-1370-2J — Embedded/External Mesh Rider Radio, 1350-1390 MHz

Overview

The Doodle Labs RM-1370-2J Mesh Rider Radio is a 2x2 MIMO mesh router operating in the 1350-1390 MHz L-band. Designed for rapid plug-and-play integration, this module delivers high-speed broadband communication in a low SWaP-C form factor, making it highly effective for drones, autonomous vehicles, and mobile robotics.

Technical Summary

• Operating Frequency: 1350-1390 MHz (L-Band)
• Architecture: 2x2 MIMO mesh router
• RF Output Power: Up to 1.0W (30 dBm)
• Encryption: FIPS-certified AES 128-bit and 256-bit options
• Operating Modes: Ad Hoc, WDS transparent bridge, Client, AP, Internet Gateway

Operational Use Cases

• Command and Control (C2): Utilizes an Ultra-Reliable Low Latency Channel (URLLC) for critical tactical and autonomous telemetry.
• Video Streaming: Supports a concurrent optimized streaming channel capable of carrying 4K video feeds.
• Mobile IIoT: Secures high-speed data links for remote robotics, unmanned systems, and tactical networking.

Deployment Environments

Designed for versatile deployment across airborne, ground vehicle, and tactical platforms. The low SWaP-C architecture is suited for integration into unmanned aerial systems (UAS), ground mobile units, and autonomous robotic systems operating in dynamic field environments.

Performance Metrics

• Throughput: Achieves up to 80 Mbps data rates utilizing a 20 MHz channel width.
• Range: Field-tested for long-range communication over 100 km using the Mesh Rider waveform.
• Power Handling: Classified as less than 10 W, with a maximum RF output of 1.0W (30 dBm).

Setup & Portability

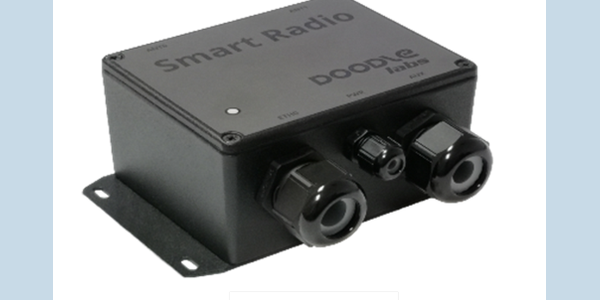

The RM-1370-2J is available in both embedded OEM and external module form factors. Engineered with very low SWaP-C (Space, Weight, Power, and Cost) characteristics, it supports rapid integration into space-constrained mobile payload bays and tactical gear.

Compatibility

The radio provides an end-to-end IP architecture supporting standard network integration. It is capable of acting as a transparent bridge, client, access point, or internet gateway to seamlessly interface with existing C2 and telemetry networks.

FAQs

• What is the Ultra Reliable Low Latency Channel (URLLC)? This feature prioritizes time-sensitive command and control data within the network. It operates alongside a concurrent streaming channel optimized for high-bandwidth traffic like 4K video.
• How does antenna selection affect tactical communications? Omnidirectional antennas broadcast in all directions, which may increase interception risk. Directional antennas concentrate the signal to reduce this exposure, but typically require different mounting accommodations due to their larger size.
• What should be verified before integrating this radio module? Evaluate the platform's available space, weight capacity, and power budget. Confirm with the manufacturer's datasheet that the selected embedded or external form factor matches the specific mounting and thermal requirements.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).

Video Notes

A demonstration video could showcase the radio's performance during a UAS flight test, highlighting the concurrent delivery of the 4K video stream and URLLC C2 data.
