RM-2025-62 — Multiband OEM Mesh Rider Radio

Overview

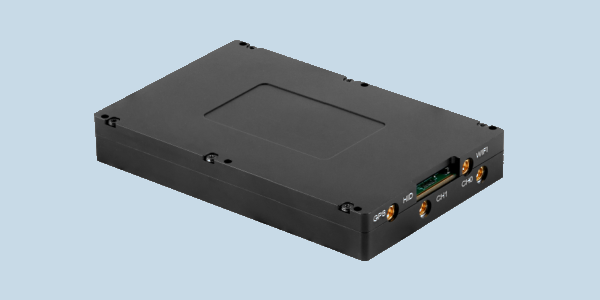

The Doodle Labs RM-2025-62 is a multiband OEM Mesh Rider radio module operating in the 1625 to 2510 MHz range. Designed for direct embedding into external chassis, it delivers fast, low-latency streaming of voice, video, and data over a highly secure, interference-resistant mesh network.

Technical Summary

• Operating Frequencies: 1625 to 2510 MHz (Software selectable M1-M6 and ISM bands)
• Maximum RF Power: 1.0W (30 dBm)
• Modulation: Adaptive COFDM (BPSK up to 64QAM)
• Encryption: FIPS 140-3 AES 128/256-bit
• Hardware Connectors: Rugged MMCX (RF) and JST-GH locking connectors (Data)

Operational Use Cases

This module supports tactical and secure data links by streaming voice, video, and command-and-control data. It features Wi-Fi bridging capabilities to connect standard tablets and smartphones to a long-range MANET network in field operations.

Deployment Environments

Suitable for airborne, ground vehicle, and dismounted tactical platforms. Because it is an OEM module, it requires housing within a specialized external chassis to provide appropriate environmental protection for the specific deployment scenario.

Performance Metrics

• Throughput: Up to 80 Mbps on a 20 MHz channel
• Latency: Ultra-Reliable Low Latency Channel (URLLC) processing for time-critical C&C data
• Signal Robustness: Interference-resistant COFDM technology ensures stable link quality in dynamic environments

Setup & Portability

The OEM form factor is specifically engineered for internal hardware integration. It relies on miniature, locking JST-GH and MMCX connectors to maintain secure connections during movement or vibration inside the host enclosure.

Compatibility

Functions as a compliant node on Doodle Labs long-range Mesh Rider networks. It interfaces with commercial smart devices via integrated Wi-Fi bridging and utilizes standard MMCX/SMA hardware for antenna integration.

FAQs

• What role does COFDM modulation play in this mesh radio? COFDM is utilized for interference resistance in challenging RF environments. The module supports adaptive radio modulations ranging from BPSK up to 64QAM.
• How does the OEM module connect to external components? The device is designed for embedded integration within an external chassis. Verify your system accommodates its small MMCX connectors for RF and JST-GH locking connectors.
• How is command and control data managed on the network? The radio utilizes an Ultra-Reliable Low Latency Channel (URLLC) specifically for C&C data transmission. Traffic is secured using FIPS 140-3 certified 128-bit and 256-bit AES encryption.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).
