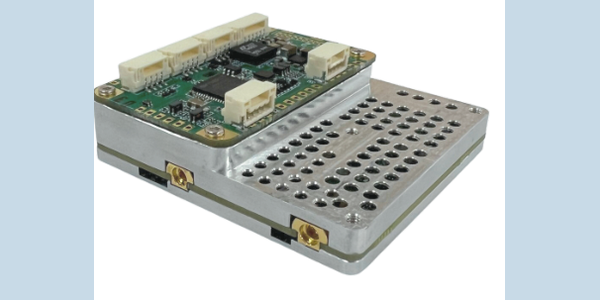

RM-2450-22M3 — Mini OEM Mesh Rider Radio (2400-2482 MHz)

Overview

The Doodle Labs RM-2450-22M3 Mini OEM Mesh Rider Radio is an advanced MANET router designed for Size, Weight, and Power (SWaP) sensitive mobile applications. Operating in the 2400-2482 MHz ISM band, this OEM component leverages patented Mesh Rider technology to deliver high-throughput, low-latency, and secure COFDM communications for tactical environments.

Technical Summary

• Frequency Band: 2400-2482 MHz (S-Band)
• Maximum Output Power: 1.25 W
• Modulation: Adaptive up to 64QAM (COFDM)
• Security: FIPS-certified AES 256- and 128-bit encryption
• Interfaces: USB and Ethernet
• Throughput: Up to 100 Mbps

Operational Use Cases

• Tactical data links and secure communications
• Command and Control (C2) with Ultra-Reliable Low Latency Channel (URLLC) capabilities
• Crystal clear 4K video streaming
• Self-healing mobile mesh networking for airborne, ground vehicle, and manpack platforms

Deployment Environments

Engineered for mission-critical deployments in tough RF environments, the RM-2450-22M3 provides exceptional Multipath and Non-Line-of-Sight (NrLOS) MIMO performance. It meets MIL-STD-810H standards for high shock and vibration resistance and features an extreme operational temperature range of -40°C to +85°C.

Performance Metrics

• Maximum Range: Field-tested beyond 100 km
• Maximum Throughput: Up to 100 Mbps
• Operating Temperature: -40°C to +85°C

Setup & Portability

This radio features a highly compact SWaP (Size, Weight, and Power) footprint designed for integration into mobile platforms. It connects easily via plug-and-play USB and Ethernet interfaces, making it suitable for handheld, manpack, and autonomous vehicle integration.

Compatibility

Integrates with host systems via standard USB and Ethernet interfaces. It supports FIPS-compliant networks requiring AES 128-bit or 256-bit encryption.

FAQs

• What are the integration requirements for this MANET radio? System integrators should verify available space and thermal parameters for the SWaP-sensitive footprint. The radio connects to host platforms via standard USB and Ethernet interfaces.
• How does COFDM improve communication reliability? Coded Orthogonal Frequency Division Multiplexing (COFDM) resists interference and signal reflections. This technology supports robust multipath and Non-Line-of-Sight (NrLOS) performance in challenging RF environments.
• What is required to achieve the maximum throughput? Attaining up to 100 Mbps depends on channel conditions, antenna selection, and network configuration. Verify specific deployment parameters and adaptive modulation settings during system design.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).

Video Notes

A short technical overview video demonstrating the OEM integration interfaces (USB/Ethernet) and a field test showcasing the MANET self-healing capabilities would be beneficial for system integrators.
