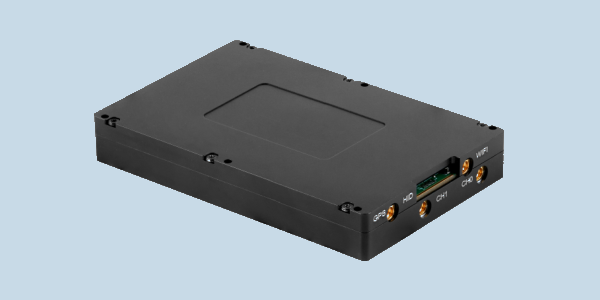

RM-5200-92 — Multiband OEM Mesh Rider Radio

Overview

The RM-5200-92 is a Multiband OEM Mesh Rider Radio designed for private wireless deployments in the 4400 to 5925 MHz range. Operating in the C-band, it provides high-throughput, long-range encrypted networking suitable for tactical, governmental, and airborne applications.

Technical Summary

• Frequency Range: 4400 - 5925 MHz (C-Band)
• Maximum Throughput: Up to 100 Mbps
• Encryption: FIPS Certified AES 256- and 128-bit
• Transmit Power: Up to 1.0 W (30 dBm)
• Connectors: MMCX (RF) and JST-GH locking connectors

Operational Use Cases

This radio is suited for tactical communications and secure data links. It supports Ultra-Reliable Low Latency Channel (URLLC) transmission for machine command and control (C&C) while simultaneously streaming 4K video, voice, and data over a self-healing mobile mesh network.

Deployment Environments

Intended for airborne (UAS) and tactical mobile platforms, this compact OEM board is designed to be embedded into external chassis for ruggedized field deployments. It supports operations in NATO, US Government, and public safety frequency bands.

Performance Metrics

• Tested Range: >100 km
• Maximum Throughput: 100 Mbps
• Networking: Self-healing/self-forming mobile mesh
• Transmit Power: 1.0W (30 dBm)

Setup & Portability

The compact OEM form factor is engineered for seamless integration into host enclosures. It features locking JST-GH and small, rugged MMCX connectors to ensure secure internal board-level connections during deployment.

Compatibility

Each device functions as a node within a Mesh Rider network and utilizes Wi-Fi to bridge compatible tablets and smartphones onto the secure communications network.

FAQs

• Should an omnidirectional antenna be used for secure tactical communications? Omnidirectional antennas broadcast in all directions, increasing interception risk. A directional antenna reduces this exposure but may require different mounting solutions and form factors.
• What encryption standards does the RM-5200-92 support? The radio utilizes FIPS-certified AES 256-bit and 128-bit encryption to secure voice, video, and data traffic over the mesh network.
• Can this OEM radio be used as a standalone unit? No. It is an embedded board designed for integration into an external chassis, requiring user-supplied enclosures and appropriate MMCX-compatible antennas.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).

Video Notes

Focus video content on demonstrating the self-healing mesh capabilities and the compact OEM board form factor. Visuals of chassis integration and URLLC telemetry would be highly beneficial.
