RM-5700-2LSX-SA-ST — Mini OEM Mesh Rider Radio

Overview

The RM-5700-2LSX-SA-ST Mini OEM Mesh Rider Radio by Doodle Labs is an advanced MANET router designed for the 5650-5755 MHz Japan Unmanned UAV Band. It utilizes patented Mesh Rider technology to deliver secure, long-range, and self-healing tactical communications.

Technical Summary

• Frequency Range: 5650-5755 MHz (C-Band)
• Modulation: COFDM with adaptive BPSK to 64QAM
• Encryption: FIPS-certified AES 256-bit and 128-bit
• Power Requirements: 5V supply, 1W maximum RF output
• Weight: 36.5 g

Operational Use Cases

This radio module is optimized for Unmanned Aerial Vehicles (UAVs) and tactical networks requiring simultaneous transmission of high-bandwidth 4K video and Ultra-Reliable Low Latency Channel (URLLC) Command and Control data.

Deployment Environments

Built for mobile, airborne, and tactical applications, the module leverages interference-resistant COFDM to maintain robust link quality in challenging RF conditions.

Performance Metrics

• Throughput: Up to 100 Mbps
• Range: Greater than 100 km capability
• Latency: Optimized URLLC for critical data

Setup & Portability

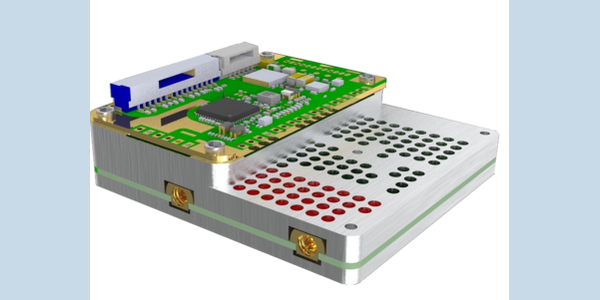

The extremely compact OEM module is designed for easy payload integration into weight-sensitive platforms. It operates using a standard USB interface and requires only a 5V power supply.

Compatibility

The device is certified under Article 2-1-72 for Unmanned Mobile Image Transmission Systems in Japan and features software-defined channel bandwidths for adaptable network integration.

FAQs

• What frequency band does this mesh radio support? It operates in the 5650-5755 MHz C-band, specifically designated for the Japan Unmanned UAV Band.
• How does the module maintain link quality in difficult RF environments? The radio utilizes advanced interference-resistant COFDM and adaptive modulations ranging from BPSK to 64QAM to optimize per-packet delivery.
• What are the basic integration requirements for this OEM module? Integration requires a standard 5V power supply and a USB connection. Verify specific pinouts and thermal management requirements in the manufacturer datasheet before deployment.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).
