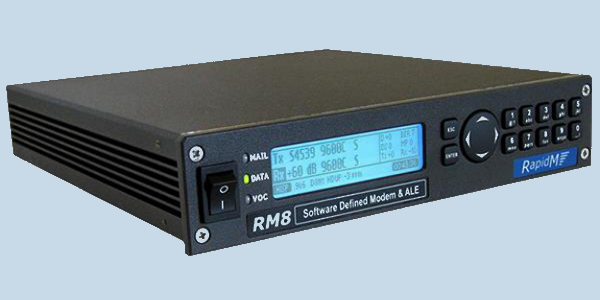

RM8 — Software Defined Modem & ALE Controller

Overview

The RM8 Software Defined Modem and ALE Controller is a standalone unit engineered for long-distance Beyond Line-of-Sight (BLOS) strategic and maritime data communications. Building upon the RM6-A architecture, it provides a comprehensive suite of LF, HF, and V/UHF data modem waveforms alongside advanced 2G and 3G ALE protocols to establish and maintain reliable connectivity.

Technical Summary

• Protocols Supported: 2G and 3G ALE (STANAG 4538 ARCS), plus comprehensive MIL-STD and STANAG LF/HF data modem waveforms.
• Signal Processing: QAM waveforms feature AUTOBAUD and adaptive equalization to mitigate HF dispersive fading and multi-path Doppler spread.
• Interference Mitigation: Adaptive tone excision actively cancels narrowband co-channel interference.
• Additional Features: Built-in GPS for linking protection, split-site operation support, and optional M1/M2 software packs.

Operational Use Cases

• Maritime Communications: Provides reliable data transfer and secure networking for naval vessels.
• Strategic Links: Delivers robust BLOS data communications for government and base-level infrastructure.
• Tactical Networks: Integrates into secure tactical data links, fully supporting complex split-site operations.

Deployment Environments

This controller is suited for diverse deployment scenarios, specifically targeting fixed-site government bases, naval maritime vessels, and mobile tactical environments.

Performance Metrics

• Standard Channel (3 kHz SSB): Up to 9600 bps
• Independent Sideband (2x3 kHz ISB): Up to 19200 bps

Setup & Portability

The system is configured as a standalone hardware unit. Verify specific mounting hardware, power requirements, and physical dimensions via the manufacturer datasheet before installation.

Compatibility

• Transceiver Integration: Superior in-band equalization and dynamic range enable effective use with both modern and older generation HF and V/UHF radios.
• Data Interfaces: Features synchronous and asynchronous connections via the DTE port.

FAQs

• What data rates does this modem support for beyond line-of-sight communications? It delivers data rates up to 9600 bps over a standard 3 kHz single sideband channel. When utilizing independent sideband, the modem supports up to 19200 bps over a 2x3 kHz channel.
• How does adaptive equalization improve tactical data links? Adaptive equalization mitigates dispersive fading and multi-path induced Doppler spread encountered in long-distance channels. This maintains signal integrity and data throughput, especially when communicating over variable high-frequency links.
• What factors should be evaluated when siting equipment for long-distance communications? Operators should select locations that minimize terrain obstructions and local electromagnetic interference. Verify that antenna separation, frequency assignment, and equipment grounding meet the requirements for the intended transmission distance.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).
