Spectrum Compact LPDA Kit — Analyzer and Antenna Kit for Signal Tracking

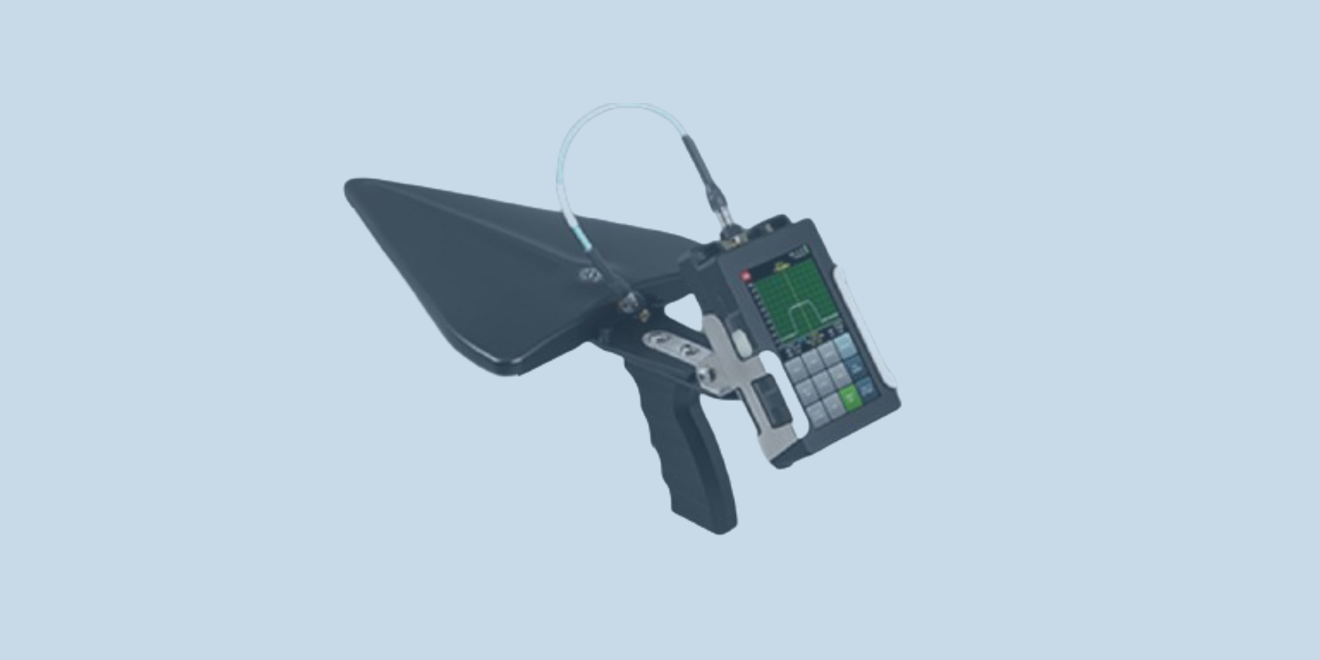

The Spectrum Compact - LPDA Signal Hunting and Direction-Finding Kit pairs SAF Tehnika's handheld spectrum analyzer with a wideband LPDA antenna on a pistol grip handle -- ideal for scanning, identifying, and walking down a signal in the field. One person can identify and walk down a signal without any other gear. Point the antenna, read the RSSI on the analyzer's touchscreen, and move toward the maximum amplitude, and thus the source of the signal.

Spectrum Compact Analyzer Specs

• 10 MHz - 3,000 MHz, 10 kHz resolution
• RBW 10/30/100/300 kHz; VBW 1/3/10/30 kHz
• Dynamic range greater/equal to 75 dB
• DANL < -125 dBm typical with LNA on
• SMA-F input, 50Ω impedance, 0-30 dB attenuator
• Li-ion 2×3500 mAh, up to 4h runtime
• USB-C charging, full charge from empty about 2 hours
• 0.57 kg / 20.1 oz mass
• 4.3in touchscreen (480×272 pixels), glove-operable
• IP54 rated, -15°C to 55°C operating range

LPDA and Handle Kit

• LPDA antenna: 650–3,000 MHz
• Antenna gain 4-6 dBi typical, SMA connector
• Passive, linear polarization
• Pistol-grip and mounting bracket
• P/N J0AA0606LPH1

Applications and Uses

• RF interference hunting and direction finding
• Spectrum surveys and signal verification
• Public safety, utility, and EW RF monitoring

What's in the kit?

• Spectrum Compact 10-3000 MHz analyzer and mount
• Wideband LPDA antenna with pistol-grip handle
• RF jumper cables and adapters
• AC/DC USB-C charger and USB cable adapters
• Leather carry bag and lanyard
