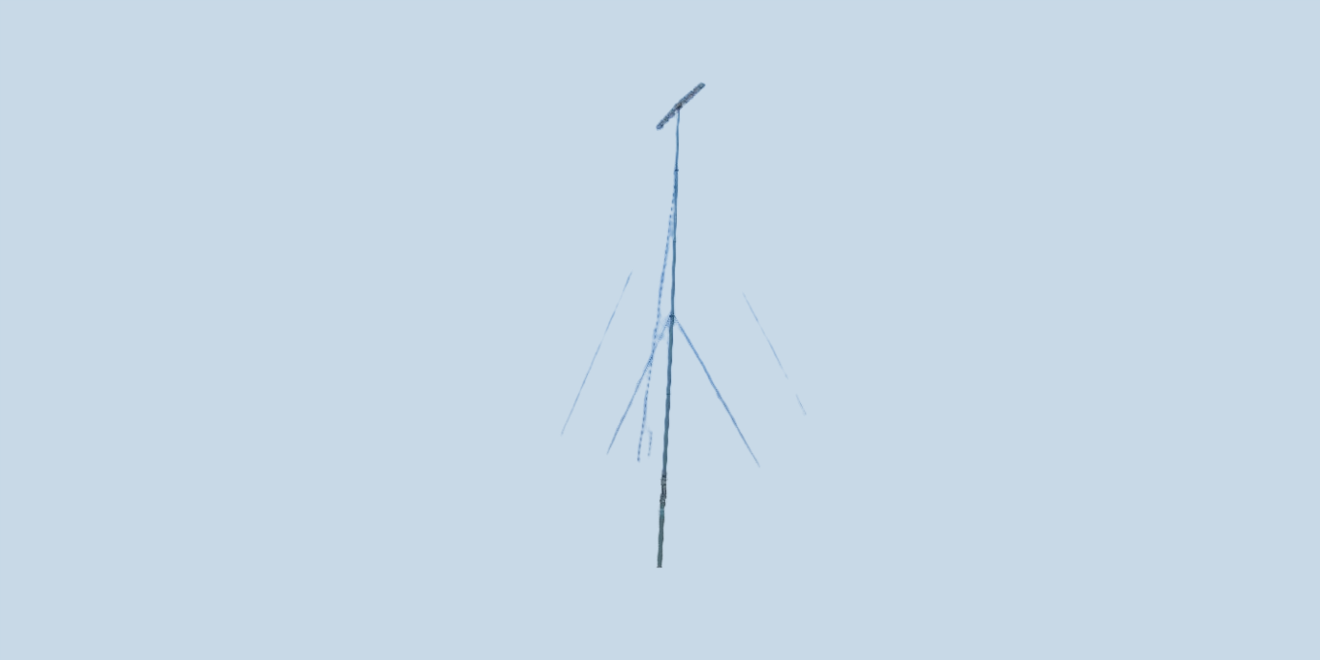

The TW-A0004 is a man-portable tactical HF directional antenna system designed for rapid deployment in the field. It is ideal for high-power and long-range HF communications.
The antenna system consists of a multi-wire travelling-wave antenna that gives good directivity throughout the frequency range.
The TW-A0004 can be connected directly to 50 ohm transmitters without the need for an antenna matching unit. The VSWR is below 2.5:1 over the entire frequency range from 1.5 to 30 MHz and the antenna is rated for a transmitter power of 2.5 kW continuous (4 kW PEP). The TW-A0004 can be deployed by two persons in less than 60 minutes including the mast.
PRODUCT FEATURES:
• Man-portable HF antenna
• Significant directive gain
• Low VSWR across a wideband
APPLICATION AREAS:
• Portable communication
• Long range HF transmission
• Any HF application
HOW TO BUY
To obtain price and delivery information about this product, click the button below.
The TW-A0004 is a man-portable tactical HF directional antenna system designed for rapid deployment in the field.
