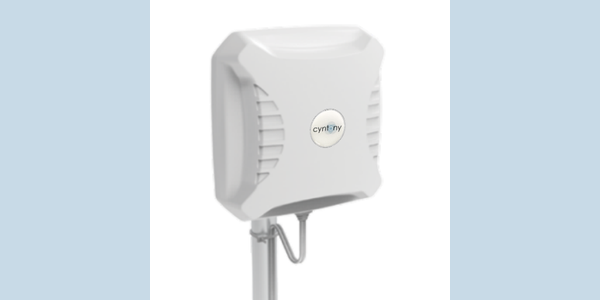

XTND-C010 — XTND-DIRECT Base Station

Overview

The XTND-C010 XTND-DIRECT Base Station delivers enhanced long-range performance utilizing an integrated Doodle Labs Mesh Rider Mini OEM 2x2 MIMO Radio. Designed as a robust IP-65 basestation, it provides a streamlined solution for resilient private wireless MANET range extension and autonomous system communications.

Technical Summary

• Radio: Integrated Doodle Labs Mesh Rider Mini OEM 2x2 MIMO
• Frequency Bands: UHF, L, and S bands
• Antennas: Internal cross-polarized, 6-9 dBi gain
• Power & Connectivity: PoE (802.3 af/at/bt) via single IP-67 rated RJ-45 connector (Fast Ethernet 100 Mbps)
• Enclosure Rating: IP-65

Operational Use Cases

• Robotic and autonomous system communications
• Resilient private wireless MANET range extension
• Secure tactical data links
• Radio relay applications utilizing two co-located base stations at different frequencies

Deployment Environments

This IP-65 rated base station is suitable for fixed site and tactical platforms, offering robust outdoor deployment capabilities. The IP-67 rated RJ-45 connector ensures reliable power and data connections in demanding environments.

Performance Metrics

• Antenna Gain: 6 to 9 dBi
• Range Extension: At least a 2x improvement compared to standard omnidirectional antennas
• Throughput: Fast Ethernet (100 Mbps) interface

Setup & Portability

The system simplifies setup by combining both power and Fast Ethernet connectivity into a single RJ-45 port energized by standard PoE (802.3 af/at/bt). Verify specific mounting hardware requirements with the manufacturer for tactical or fixed site installations.

Compatibility

Features an integrated Doodle Labs Mesh Rider Mini OEM radio. It is compatible with standard PoE (802.3 af/at/bt) power sources and Fast Ethernet networks. For radio relay across different frequencies, two XTND base stations can be co-located.

FAQs

• What applications are suitable for this MANET base station? It is utilized for tactical data links, autonomous system communications, and private wireless range extension.
• How does cross-polarization benefit MIMO communications? Cross-polarized antennas orient their electric fields orthogonally. This spatial diversity improves signal quality and data throughput in multi-path environments by reducing correlation between data streams.
• How are power and data supplied to the base station? The system utilizes standard Power over Ethernet (PoE 802.3 af/at/bt) to provide both power and Fast Ethernet connectivity through a single IP-67 rated RJ-45 connector.
