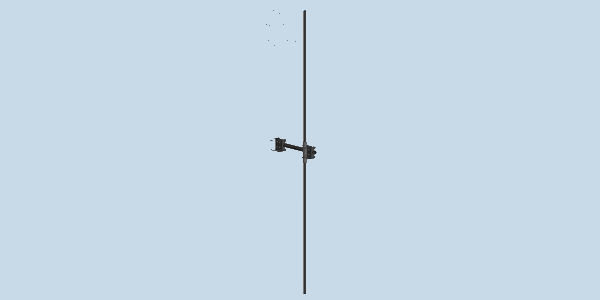

AD-39/2160-AW — Stationary VHF Dipole Antenna

Overview

The AD-39/2160-AW is a rugged dipole antenna engineered for stationary fixed-site operations across the 20 to 160 MHz frequency range. It features a lightweight yet strong fiberglass and aluminum construction with comprehensive weather protection, delivering reliable tactical communication capabilities in challenging environmental conditions.

Technical Summary

• Frequency Range: 20 to 160 MHz (HF and VHF)
• Antenna Type: Dipole (Omnidirectional)
• Power Handling: Up to 200 W CW
• Impedance Matching: Center matching unit with balun transformer
• Polarization: Configurable for vertical or horizontal operation
• Construction: Aluminum housing with wide fiberglass tube elements

Operational Use Cases

• Stationary tactical communication networks
• Fixed-site high-frequency and VHF operations
• High-power transceive base station deployments

Deployment Environments

• Harsh weather environments with heavy winds
• Geographical locations subject to heavy ice loads
• Environments requiring MIL-STD-810G compliance

Performance Metrics

• Maximum Transmit Power: 200 W CW
• Operating Range: 20 to 160 MHz

Setup & Portability

• Mounting Compatibility: Accommodates square or round tubes up to 120 mm in diameter
• Orientation: Designed for installation in either vertical or horizontal polarization modes
• Finish: Black passivated/cataphoresis on metal parts; black paint on fiberglass

Compatibility

• Compatible with structural mounting masts utilizing round or square profiles up to 120 mm
• Supports tactical transceivers operating within the 20 to 160 MHz band up to 200 W CW

FAQs

• How do power ratings impact omnidirectional transmit antennas? Selecting an antenna that supports the maximum continuous output power of the transmitter prevents hardware damage. Antennas designed for moderate power transmission inherently function as receiving antennas as well.
• What radiation pattern does a dipole antenna typically exhibit? A standard vertical dipole generates a three-dimensional omnidirectional radiation pattern. This provides continuous horizontal coverage across the azimuth plane while exhibiting signal nulls directly above and below the antenna.
• How do I ensure proper mounting for a fixed-site deployment? Confirm that the supporting mast uses round or square tubing within the specified diameter limits. Always verify structural load capacities and secure all supplied hardware to withstand expected environmental forces.
• Problems we solve: how do we narrow antenna choices? Balancing operating bands, coverage needs and mounting space can make antenna selection difficult. Share those constraints with Cyntony to compare candidate antennas and identify what needs manufacturer confirmation (Our process).
• Outcomes we deliver: what did Cyntony's tactical-link field test establish? Cyntony's 2025 XTND-DIRECT field test showed how terrain, antenna height and clearance affected a specific mesh-radio link. The result informs deployment questions; it does not establish range, throughput or suitability for this product (Field-test account).

Video Notes

A brief technical overview video demonstrating the mounting process onto both round and square masts, and visually contrasting the vertical versus horizontal installation configurations, would assist buyers with deployment planning.
