ATA3090M — Autonomous Tunable Vehicular VHF Antenna

Overview

The ATA3090M is an autonomous tunable vehicular antenna designed for the 30 to 90 MHz VHF band. Because it requires no external control signals, it provides a seamless solution for upgrading existing tactical communication radio systems.

Technical Summary

This low-profile whip monopole utilizes PIN diode-based active matching to automatically tune to optimal circuitry at the required frequency. With an average tuning speed of less than 50 μs, the antenna handles up to 50 W of power and delivers up to 6dB superior gain compared to traditional passively matched wideband antennas.

Operational Use Cases

Primarily designed for tactical communications, the autonomous tuning capabilities of the ATA3090M improve link budgets and signal-to-noise ratios during critical vehicle-based operations.

Deployment Environments

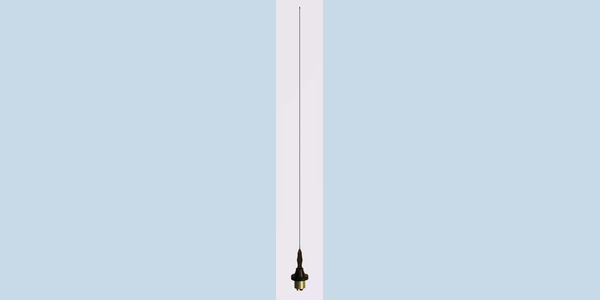

Engineered for military and commercial ground vehicles, the antenna features a rugged steel whip radiator and a shock absorption spring to withstand demanding physical environments.

Performance Metrics

• Frequency Range: 30 to 90 MHz (VHF)
• Power Handling: 50 W
• Tuning Speed: Average < 50 μs
• Polarization: Vertical
• Gain: Up to 6dB improvement over passive antennas

Setup & Portability

The ATA3090M is mechanically compatible with standard 4-hole NATO and US pattern mounts, allowing for straightforward installation on appropriately equipped ground vehicles.

Compatibility

This antenna mounts to standard NATO/US pattern hardware and operates autonomously without requiring integration with external transceiver control lines.

FAQs

• Does a vehicular whip monopole require a ground plane? Vehicular whip monopoles typically rely on the conducting metallic surface of the vehicle to act as a ground plane for optimal RF performance.
• Why is continuous impedance matching important for transmitting? Providing a well-matched impedance minimizes reflected power, keeping VSWR below levels that could damage the transmitter amplifier while maximizing the radiated signal.
• What is ATA3090M — Autonomous Tunable Vehicular VHF Antenna used for? ATA3090M — Autonomous Tunable Vehicular VHF Antenna is categorized as Omni Antenna. Listed applications include Tactical Communication.
• Problems we solve: how do we narrow antenna choices? Balancing operating bands, coverage needs and mounting space can make antenna selection difficult. Share those constraints with Cyntony to compare candidate antennas and identify what needs manufacturer confirmation (Our process).
• Outcomes we deliver: what did Cyntony's tactical-link field test establish? Cyntony's 2025 XTND-DIRECT field test showed how terrain, antenna height and clearance affected a specific mesh-radio link. The result informs deployment questions; it does not establish range, throughput or suitability for this product (Field-test account).
