J0SSAP33 — Spectrum Compact 0.3-3 GHz v.2

Overview

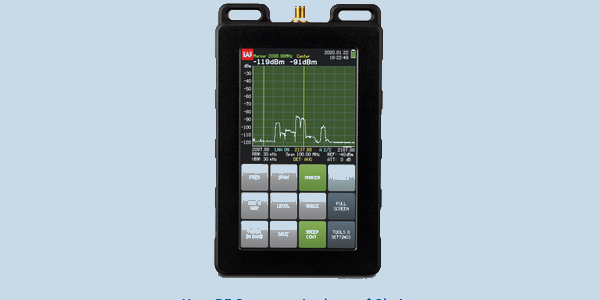

The SAF J0SSAP33 Spectrum Compact (version 2) is a highly portable, battery-operated handheld RF spectrum analyzer covering 300 MHz to 3,000 MHz. Designed for rigorous field measurements, it features a 4.3-inch RGB touchscreen and internal data logging for interference detection, signal bandwidth analysis, and channel power measurements.

Technical Summary

• Frequency Range: 300 MHz to 3,000 MHz
• Frequency Resolution: 10 kHz
• Resolution Bandwidth (RBW): 10 kHz to 300 kHz (selectable)
• Dynamic Range: Up to 75 dB
• Maximum Safe Input Level: +25 dBm (with internal attenuation)

Operational Use Cases

• Interference detection in tactical and monitoring applications
• Center frequency and signal bandwidth analysis
• Channel power and adjacent channel power measurements

Deployment Environments

The analyzer is housed in an IP54-rated enclosure, providing protection against dust and water ingress suitable for demanding field environments and tactical monitoring locations.

Performance Metrics

• Battery Life: Up to 4 hours of operation
• Signal Amplification: Integrated Low Noise Amplifier (LNA)
• Data Storage: 8 GB internal memory for logging measurement data, traces, and single or multiple sweeps

Setup & Portability

Weighing only 0.57 kg, this compact handheld instrument is highly portable. It operates on built-in dual 3500 mAh Li-ion batteries and utilizes a 4.3-inch touchscreen for field configuration without requiring external peripherals.

Compatibility

Measurement data and spectrum traces are saved to internal memory in proprietary formats. Users should verify required data export methods for external analysis.

FAQs

• What is the operational frequency range and resolution of this spectrum analyzer? The unit covers 300 MHz to 3,000 MHz with a frequency resolution of 10 kHz and selectable resolution bandwidths from 10 kHz to 300 kHz.
• How is field intensity or power density measured using a spectrum analyzer? A spectrum analyzer is typically attached by a coaxial cable to a receiving antenna. Free space values of power density must be converted to actual measurements based on the antenna's specific characteristics and cable losses.
• What is the maximum safe input level for this device? The analyzer supports a maximum safe RF input level of up to +25 dBm when utilizing its internal attenuation.
