J0SSAP52 — Spectrum Compact 6-20 GHz v.2

Overview

The SAF Spectrum Compact J0SSAP52 is an ultra-portable, handheld RF spectrum analyzer operating from 5.925 to 20 GHz. Designed for field measurements and interference detection, this instrument offers advanced data logging and an intuitive touchscreen interface for tactical and commercial monitoring.

Technical Summary

Operating across C, X, Ku, and K bands, this analyzer features a dynamic range greater than 70 dB and a built-in Low Noise Amplifier (LNA). It supports advanced measurement tools including channel power, adjacent channel power, and signal bandwidth analysis. The maximum safe input level is +25 dBm (0.3W).

Operational Use Cases

Ideal for tactical monitoring and commercial signal analysis, the device facilitates on-site interference detection and rapid field measurements. Its 8 GB of built-in memory enables comprehensive storage of sweeps, profiles, and measurement data for post-mission analysis.

Deployment Environments

Housed in a ruggedized IP54-rated enclosure, this spectrum analyzer is built for dependable use in demanding outdoor and field environments where protection against dust and water ingress is required.

Performance Metrics

• Frequency Range: 5.925 to 20 GHz
• Dynamic Range: >70 dB
• Maximum Safe Input: +25 dBm (0.3W)
• Internal Storage: 8 GB

Setup & Portability

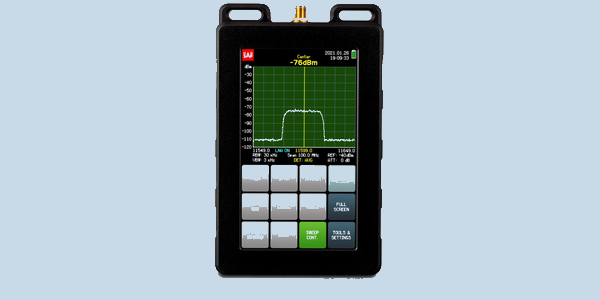

Weighing just 0.57 kg, the handheld unit features a 4.3-inch RGB touchscreen for rapid field operation. It is powered by dual 3500 mAh Li-ion batteries providing up to 4 hours of runtime, with charging supported via a modern USB Type-C interface.

FAQs

• What frequency bands does this spectrum analyzer cover? The device operates from 5.925 to 20 GHz. This range provides coverage across standard C, X, Ku, and K bands for monitoring and interference detection.
• How is power density measured with a spectrum analyzer? Measuring power density involves converting free-space values using a spectrum analyzer attached by coaxial cable to a calibrated receiving antenna. Apply the correct conversion factors for the specific antenna used.
• What is the maximum safe input level for this device? The maximum safe input level is +25 dBm (0.3W). Verify that expected signal levels do not exceed this threshold to prevent damage to the receiver circuitry.
• Problems we solve: how do we choose measurement equipment? Operating bands, field conditions and reporting needs can pull instrument selection in different directions. Share the signals you need to measure with Cyntony to compare equipment and identify specifications requiring manufacturer confirmation (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).
