J0SSAP61 — Spectrum Compact 56-71 GHz

Overview

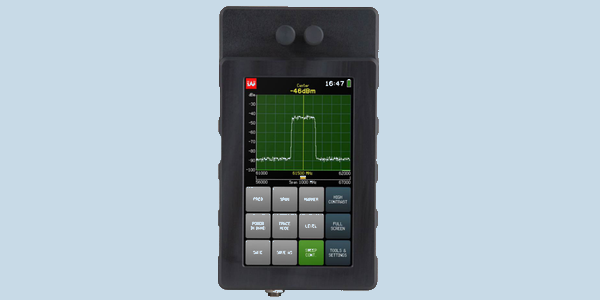

The SAF Spectrum Compact 56-71 GHz (J0SSAP61) is a handheld, battery-powered spectrum analyzer designed for V-band microwave link measurements. Weighing only 0.57 kg, it provides field engineers with an ultra-portable tool for link troubleshooting, interference detection, and alignment tasks.

Technical Summary

• Frequency Range: 56 GHz to 71 GHz
• Key Measurements: Channel Power, Adjacent Channel Power, Signal Bandwidth
• Interface: Integrated TFT LCD resistive touchscreen
• Weight: 0.57 kg
• Battery Life: Up to 3 hours

Operational Use Cases

Designed for field monitoring and network maintenance, this spectrum analyzer is ideal for troubleshooting V-band microwave links, detecting signal interference, and performing point-to-point alignments.

Deployment Environments

Features a rugged design intended for outdoor deployment, with an operating temperature range of -15°C to +55°C.

Performance Metrics

Provides excellent sensitivity across the 56,000 MHz to 71,000 MHz spectrum. Data points can be seamlessly stored in a proprietary format to save continuous sweep records.

Setup & Portability

The ultra-lightweight 0.57 kg form factor and battery life of up to 3 hours facilitate extended field operations. The intuitive touchscreen interface enables quick frequency and span adjustments without requiring bulky peripheral equipment.

Compatibility

Supports integration into more complex testing environments via API capabilities and remote control using compatible PC software.

FAQs

• What applications is the V-band spectrum analyzer suited for? It is designed for microwave link troubleshooting, signal alignment, and interference detection in the 56 to 71 GHz frequency range.
• What key measurements does the analyzer support? The instrument provides dedicated tools for measuring channel power, adjacent channel power, and signal bandwidth.
• How is free-space power density converted to an actual measurement? Converting free-space power density to an accurate measurement requires accounting for the attached receiving antenna and coaxial cable losses. Verify calibration procedures before interpreting spectrum analyzer power readings.
• Problems we solve: how do we choose measurement equipment? Operating bands, field conditions and reporting needs can pull instrument selection in different directions. Share the signals you need to measure with Cyntony to compare equipment and identify specifications requiring manufacturer confirmation (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).

Video Notes

A brief demonstration showing the touchscreen interface in use, highlighting frequency adjustments and continuous sweep recording, would be highly beneficial for illustrating field usability.
