LinkAlign-360AZR-10 — Auto Acquisition Antenna Positioner

Overview

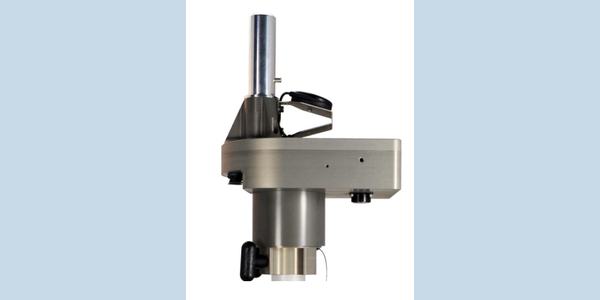

The LinkAlign-360AZR-10 by Nextmove Technologies is a Power Over Ethernet (PoE) antenna positioner designed to automatically point and peak directional antennas for microwave line-of-sight (LOS) communications. It features integrated GPS, a digital compass, and a full-featured web-based user interface to enable rapid target acquisition and precise alignment.

Technical Summary

• Payload Capacity: Up to 60 lbs (27.2 kg)
• Azimuth Range: 360°
• Navigation Sensors: Built-in GPS and digital compass
• Power: Power Over Ethernet (PoE)
• Targeting Method: Auto peak using radio signal strength

Operational Use Cases

This positioner is engineered for tactical communication networks and data links. It is specifically designed to interface with U.S. and NATO forces Band III, Band III+, and Band 4 line-of-sight radio systems to maintain highly accurate communication links.

Deployment Environments

Supported platform classifications include fixed site and tactical environments. Verify specific environmental durability ratings and physical mounting footprint requirements against the manufacturer datasheet prior to deployment.

Performance Metrics

• Maximum Payload: 60 lbs (27.2 kg)
• Azimuth Rotation: 360° continuous or limited (verify limits on datasheet)
• Pointing Automation: Recalls known target locations from an internal database and performs final peaking based on active signal strength.

Setup & Portability

The unit relies on a single Power Over Ethernet (PoE) connection, simplifying cable routing. Setup involves using the web-based user interface and stored locations database for target recall. Users must verify the compatible physical attachment methods and hardware interfaces directly with the manufacturer.

Compatibility

The positioner interfaces directly with U.S. and NATO Band III, Band III+, and Band 4 LOS radios. It accommodates directional antennas and payloads up to 60 lbs.

FAQs

• How does an auto-acquisition positioner improve tactical line-of-sight links? Auto-acquisition systems use GPS and digital compasses to rapidly point directional antennas, followed by auto-peaking based on active radio signal strength, reducing manual alignment time.
• Why use directional antennas for tactical communications? Directional antennas reduce the physical area where broadcast signals can be intercepted, providing more secure communications than omnidirectional options. However, they require accurate pointing and may dictate larger form factors.
• What is the maximum payload limit for this positioner? The unit supports antenna payloads up to 60 lbs (27.2 kg). Verify center-of-gravity limitations and mounting interfaces with the technical datasheet.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).
