LinkAlign-360FER-21 — Auto Acquisition Antenna Positioner

Overview

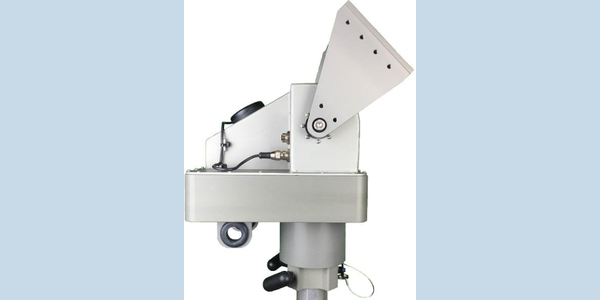

The LinkAlign-360FER-21 is a Power Over Ethernet (PoE) auto-acquisition antenna positioner designed to automatically point and peak directional antennas for microwave line-of-sight communications. It integrates a built-in GPS and digital compass to deliver rapid, accurate alignment for established target locations.

Technical Summary

• Payload Capacity: Up to 70 lbs (31.8 kg)
• Azimuth Range: 360 degrees
• Elevation Range: +120 to -20 degrees
• Positioning Sensors: Built-in GPS and digital compass
• Control: Web-based user interface with stored locations database
• Power: Power Over Ethernet (PoE)

Operational Use Cases

Ideal for tactical communications and establishing microwave data links. Operators can utilize the stored locations database to quickly recall known target coordinates, utilizing the automated peaking sequence to optimize radio signal strength.

Deployment Environments

Suitable for both fixed site and tactical deployments. Various operational configurations are supported through optional accessories, including tripods, tabletop mounts, polarization rotators, joysticks, and transit cases.

Performance Metrics

• Antenna Support: Typically paired with 2-foot to 3-foot antennas
• Maximum Payload: 70 lbs (31.8 kg)
• Alignment Mechanism: Automated peaking using radio signal strength

Setup & Portability

Installation is streamlined through Power Over Ethernet (PoE), requiring only a single cable for power and control. For mobile deployments, the availability of optional transit cases, adapter brackets, and tripods facilitates efficient transport and field setup.

Compatibility

Compatible with directional antennas and payloads weighing up to 70 lbs (31.8 kg). Integration with specific radios and antennas can be achieved using optional radio and antenna adapter brackets.

FAQs

• Why choose a directional antenna positioner over an omnidirectional setup? Directional communications reduce interception exposure compared to omnidirectional broadcasts, improving security for tactical operations. A positioner automates the precise alignment of these narrow-beam systems.
• How does the auto-peaking function operate? The positioner utilizes its built-in GPS and digital compass to target stored coordinates, then performs a final alignment using radio signal strength.
• How are power and control integrated during installation? Power and control run through a single Power Over Ethernet (PoE) connection, which streamlines cabling requirements. Verify mount compatibility for specific tactical or fixed site configurations.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).
