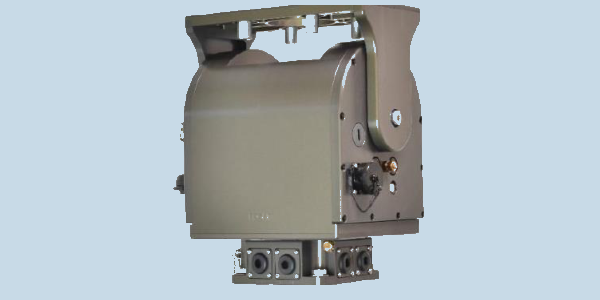

LinkAlign-360MPT-25 — Auto Acquisition Antenna Positioner

Overview

The LinkAlign-360MPT-25 is a Power Over Ethernet (PoE) antenna positioner engineered to automatically point and peak directional antennas. Designed for continuous tracking applications, it supports microwave line-of-sight (LoS) and satellite communications data links.

Technical Summary

• Payload Capacity: Up to 50 lbs (22.7 kg)
• Travel Range: 400 degrees azimuth, 190 degrees elevation (+/-95 degrees)
• Feedback Resolution: 0.01 degrees
• Maximum Operational Torque: 80 ft-lbs (108 Nm)
• Power: Power Over Ethernet (PoE)

Operational Use Cases

This positioner is deployed for tactical communications and data links requiring precise antenna alignment. It features two-line element set program track capability for tracking satellites in low or medium earth orbit (LEO/MEO), as well as direct point-to-point microwave LoS targeting.

Deployment Environments

Suitable for fixed site and tactical deployments, the system features an embedded antenna controller equipped with a built-in GPS and digital compass to accelerate field alignment and spatial orientation.

Performance Metrics

• Azimuth/Elevation Resolution: 0.01 degrees for highly precise pointing
• Tracking Range: 360/400 degrees continuous tracking on azimuth
• Torque Limit: Sustains up to 80 ft-lbs (108 Nm) of operational torque

Setup & Portability

The system is configured via a full-featured web-based user interface providing manual control, status updates, and a stored satellite database. It incorporates versatile Ethernet and RF pass-through options to streamline cabling during setup.

Compatibility

The positioner is typically paired with directional antennas up to 2 feet in diameter and supports payload weights up to 50 lbs (22.7 kg).

FAQs

• What is the advantage of using a directional antenna for tactical communications? Directional antennas reduce signal exposure and lower interception risks compared to omnidirectional antennas. An automated positioner maintains the precise alignment necessary for these focused, secure communication links.
• How are LEO or MEO satellites tracked continuously? Tracking utilizes an embedded controller featuring two-line element (TLE) set program track capability. The positioner automatically adjusts azimuth and elevation to follow the moving satellite trajectory.
• What payload specifications must be verified before installation? Confirm the combined weight of the antenna and mounting hardware does not exceed 50 lbs (22.7 kg). Additionally, verify that environmental loads will not exceed the 80 ft-lbs maximum operational torque.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).
